| Specification | ||||||
| Unit: mm | ||||||

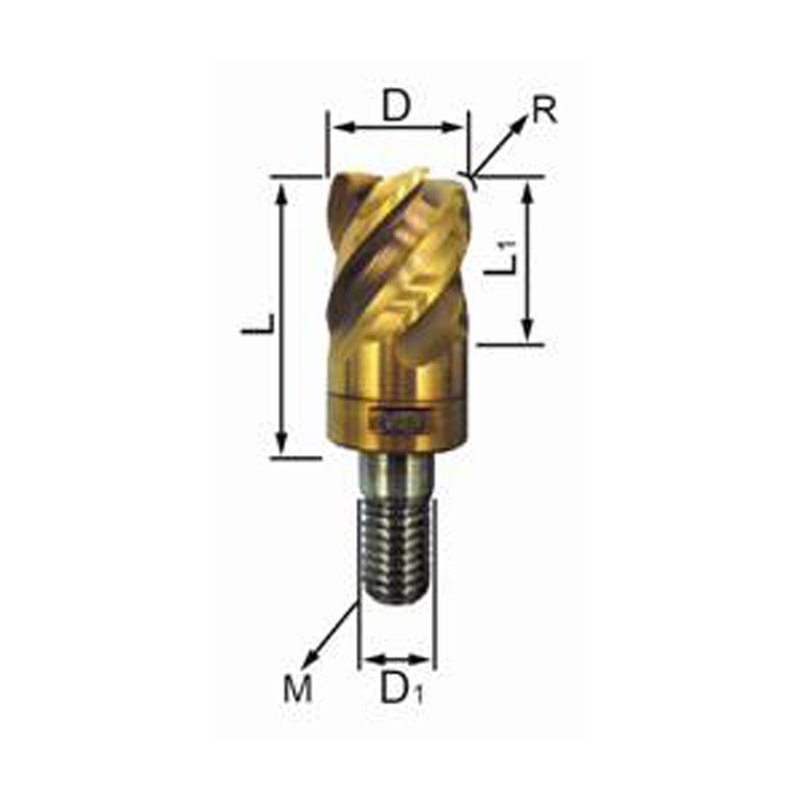

| Model No. | Dia x Corner R D x R | Flute-Length L1 | Overall Length L | Neck Dia D1 | Tread Size M | remark |
| HESR 080054TX | 8 x 0.5R | 8 | 17 | 5.5 | M05 | |
| HESR 080104TX | 8 x 1R | 8 | 17 | 5.5 | M05 | |
| HESR 100054TX | 10 x 0.5R | 10 | 21 | 5.5 | M05 | |
| HESR 100104TX | 10 x 1R | 10 | 21 | 5.5 | M05 | |
| HESR 100204TX | 10 x 2R | 10 | 21 | 5.5 | M05 | |
| HESR 120054TX | 12 x 0.5R | 12 | 25.5 | 6.5 | M06 | |
| HESR 120104TX | 12 x 1R | 12 | 25.5 | 6.5 | M06 | |
| HESR 120204TX | 12 x 2R | 12 | 25.5 | 6.5 | M06 | |
| HESR 160054TX | 16 x 0.5R | 16 | 30 | 8.5 | M08 | |
| HESR 160104TX | 16 x 1R | 16 | 30 | 8.5 | M08 | |
| HESR 160204TX | 16 x 2R | 16 | 30 | 8.5 | M08 | |
| HESR 200104TX | 20 x 1R | 20 | 38 | 10.5 | M10 | |
| HESR 200204TX | 20 x 2R | 20 | 38 | 10.5 | M10 | |
| HESR 200304TX | 20 x 3R | 20 | 38 | 10.5 | M10 | |
| HESR 250104TX | 25 x 1R | 25 | 42 | 12.5 | M12 | |
| HESR 250204TX | 25 x 2R | 25 | 42 | 12.5 | M12 | |
| HESR 250304TX | 25 x 3R | 25 | 42 | 12.5 | M12 |
