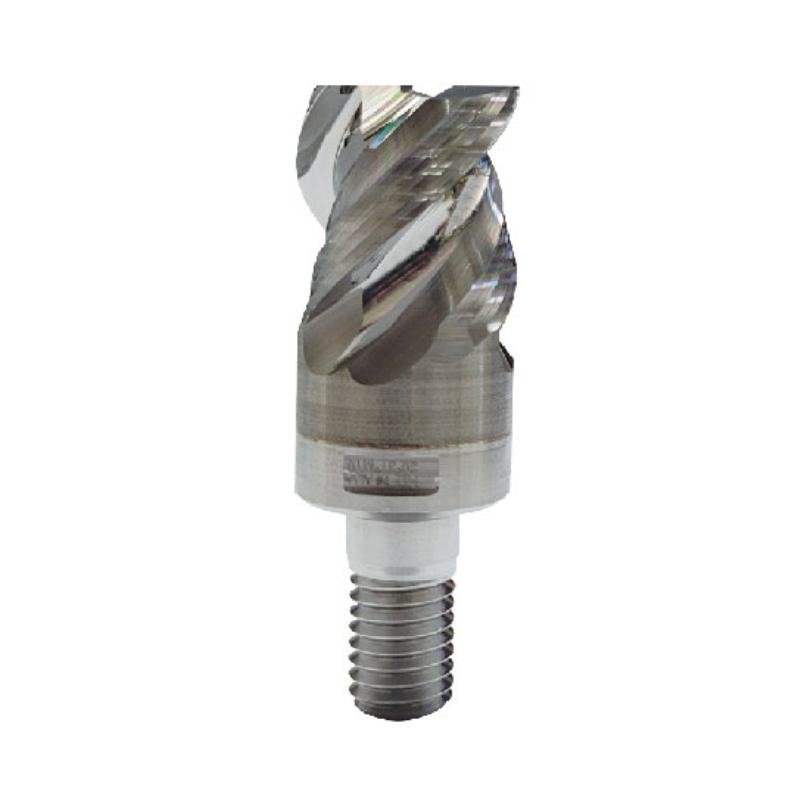

Model HAE Tungsten Carbide End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAE Tungsten Carbide End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAE Tungsten Carbide End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAE Tungsten Carbide End Mill Bits with Threaded Shank for Aluminium Cutting

Model HAE Tungsten Carbide End Mill Bits with Threaded Shank for Aluminium Cutting

Product Model

Summary

Suitable for applications：

  • HRC45~ HRC65 steel
  • Aluminum
Inquiry Prev Back Next

Specification

Material

Specification
Unit: mm
　

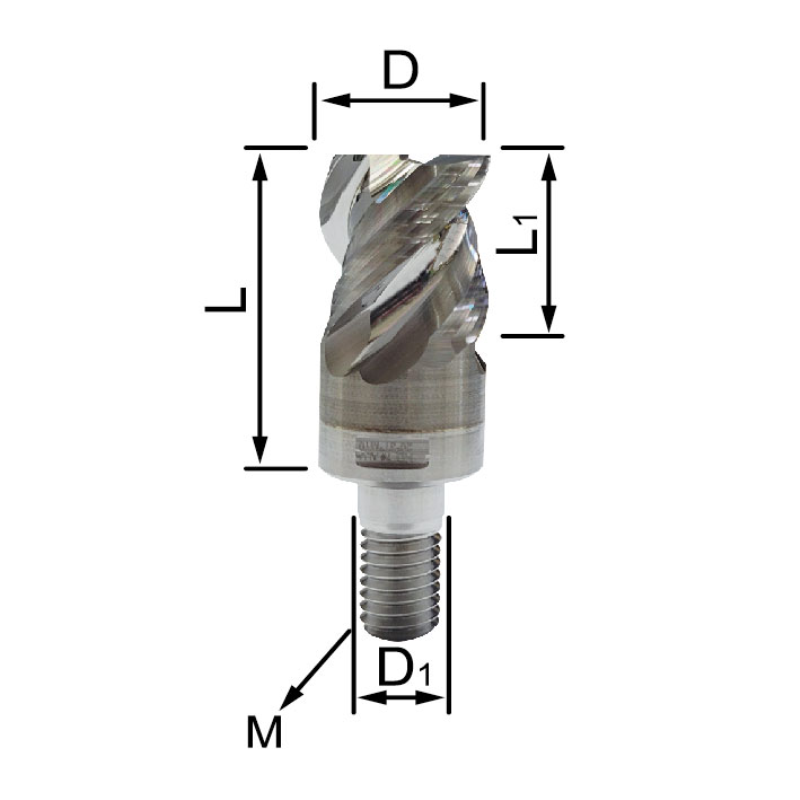

Model No. Diameter D Flute-Length L1 Overall Length L Neck Dia D1 Tread Size M remark
HAE 0803 8 8 17 5.5 M05 　
HAE 1003 10 10 21 5.5 M05 　
HAE 1203 12 12 25.5 6.5 M06 　
HAE 1603 16 16 30 8.5 M08 　
HAE 2003 20 20 38 10.5 M10 　
HAE 2503 25 25 42 12.5 M12
