| Specification | ||||||
| Unit: mm | ||||||

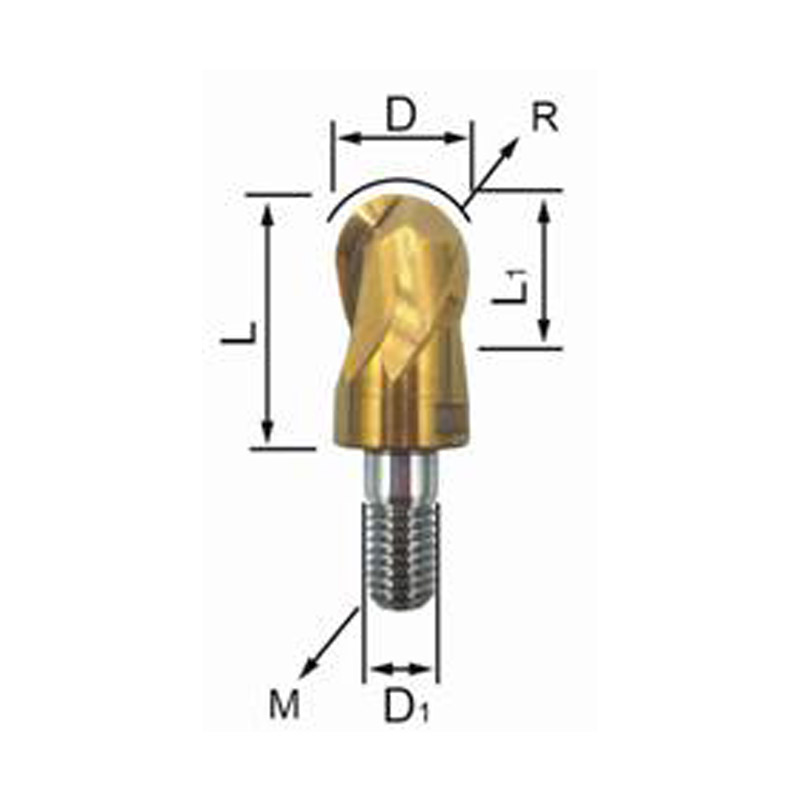

| Model No. | Diameter D | Flute-Length L1 | Overall Length L | Neck Dia D1 | Tread Size M | remark |
| HSB 0802TX | 4R | 8 | 17 | 5.5 | M05 | |
| HSB 1002TX | 5R | 10 | 21 | 5.5 | M05 | |
| HSB 1202TX | 6R | 12 | 25.5 | 6.5 | M06 | |
| HSB 1602TX | 8R | 16 | 30 | 8.5 | M08 | |
| HSB 2002TX | 10R | 20 | 38 | 10.5 | M10 | |
| HSB 2502TX | 12.5R | 25 | 42 | 12.5 | M12 |
