Model GL Tungsten Carbide Anti-Vibration Tools Holder

Product Model

Summary

Tungsten Carbide Anti-Vibration Shank

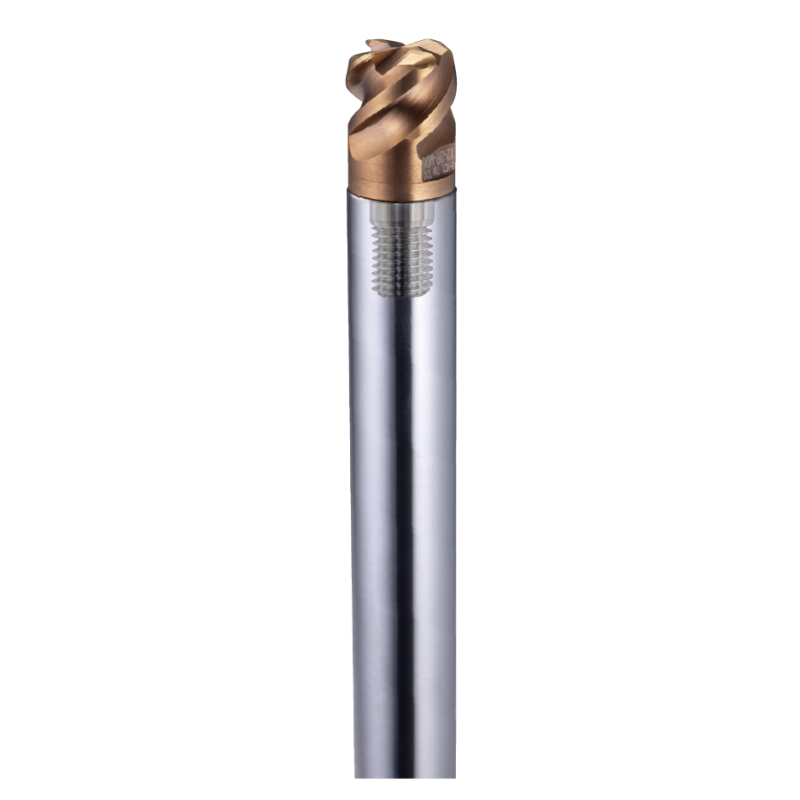

Model: GL Tungsten Carbide Anti-Vibration Tools Holder
One piece formed design of the Tungsten Carbide Tools holder, have excellent Stiffness and great Anti-Vibration, will not be twisted and deformed due to excessive lateral force. Stretch the depth processing, improve the precision of the surface. Achieve the ultra-long, ultra-deep, and ultra-high-precision machining. Have no issue of the welding breakage. Emphasize the variability of the exchangeable endmill heads, even the exchangeable endmill head damaged, it can be replaced immediately.

Inquiry Prev Back Next

Specification

Material

Specification

Unit: mm
Ordering code	Fig	L	M	D2	D	D1	L1	a°	Note
GL06-06-060-M03	1	60	M3*0.5	3.5	6	6
GL06-06-120-M03	1	120	M3*0.5	3.5	6	6

GL08-08-060-M04	1	60	M4*0.7	4.5	8	8
GL08-08-100-M04	1	100	M4*0.7	4.5	8	8
GL08-08-120-M04	1	120	M4*0.7	4.5	8	8
GL08-10-150-M04-DT60	2	150	M4*0.7	4.5	10	7.8	60	1°
GL08-08-075-M05	1	75	M5*0.8	5.5	8	8
GL08-08-100-M05	1	100	M5*0.8	5.5	8	8
GL08-08-120-M05	1	120	M5*0.8	5.5	8	8

GL10-10-075-M05	1	75	M5*0.8	5.5	10	10
GL10-10-100-M05	1	100	M5*0.8	5.5	10	10
GL10-10-150-M05	1	150	M5*0.8	5.5	10	10
GL10-12-150-M05-DT60	2	150	M5*0.8	5.5	12	9.8	60	1°
GL10-20-300-M05-DT135	2	300	M5*0.8	5.5	20	9.8	135	2.15°

GL12-12-075-M06	1	75	M6*1.0	6.5	12	12
GL12-12-100-M06	1	100	M6*1.0	6.5	12	12
GL12-12-150-M06	1	150	M6*1.0	6.5	12	12
GL12-12-200-M06	1	200	M6*1.0	6.5	12	12
GL12-16-150-M06-DT70	2	150	M6*1.0	6.5	16	11.8	70	1.65°
GL12-16-200-M06-DT90	2	200	M6*1.0	6.5	16	11.8	90	1.3°
GL12-16-250-M06-DT115	2	250	M6*1.0	6.5	16	11.8	115	1°
GL12-20-300-M06-DT135	2	300	M6*1.0	6.5	20	11.8	135	1.7°

GL16-16-100-M08	1	100	M8*1.25	8.5	16	16
GL16-16-150-M08	1	150	M8*1.25	8.5	16	16
GL16-16-200-M08	1	200	M8*1.25	8.5	16	16
GL16-16-250-M08	1	250	M8*1.25	8.5	16	16
GL16-20-200-M08-DT90	2	200	M8*1.25	8.5	20	15.5	90	1.3°
GL16-20-250-M08-DT115	2	250	M8*1.25	8.5	20	15.5	115	1°
GL16-20-300-M08-DT135	2	300	M8*1.25	8.5	20	15.5	135	0.85°

GL20-20-100-M10	1	100	M10*1.5	10.5	20	20
GL20-20-150-M10	1	150	M10*1.5	10.5	20	20
GL20-20-200-M10	1	200	M10*1.5	10.5	20	20
GL20-20-250-M10	1	250	M10*1.5	10.5	20	20
GL20-20-300-M10	1	300	M10*1.5	10.5	20	20
GL20-20-400-M10	1	400	M10*1.5	10.5	20	20
GL20-25-200-M10-DT90	2	200	M10*1.5	10.5	25	19.8	90	1.6°
GL20-25-250-M10-DT115	2	250	M10*1.5	10.5	25	19.8	115	1.25°
GL20-25-300-M10-DT135	2	300	M10*1.5	10.5	25	19.8	135	1.1°

GL25-25-100-M12	1	100	M12*1.75	12.5	25	25
GL25-25-150-M12	1	150	M12*1.75	12.5	25	25
GL25-25-200-M12	1	200	M12*1.75	12.5	25	25
GL25-25-250-M12	1	250	M12*1.75	12.5	25	25
GL25-25-300-M12	1	300	M12*1.75	12.5	25	25
GL25-25-350-M12	1	350	M12*1.75	12.5	25	25
GL25-32-200-M12-DT90	2	200	M12*1.75	12.5	32	24.5	90	2.3°
GL25-32-250-M12-DT115	2	250	M12*1.75	12.5	32	24.5	115	1.75°
GL25-32-300-M12-DT135	2	300	M12*1.75	12.5	32	24.5	135	1.5°

GL32-32-150-M16	1	150	M16*2.0	17	32	32
GL32-32-200-M16	1	200	M16*2.0	17	32	32
GL32-32-250-M16	1	250	M16*2.0	17	32	32
GL32-32-300-M16	1	300	M16*2.0	17	32	32
GL32-32-400-M16	1	400	M16*2.0	17	32	32

GL42-42-250-M20	1	250	M20*2.5	21	42	42
GL42-42-300-M20	1	300	M20*2.5	21	42	42
GL42-42-400-M20	1	400	M20*2.5	21	42	42
GL42-42-500-M20	1	500	M20*2.5	21	42	42
