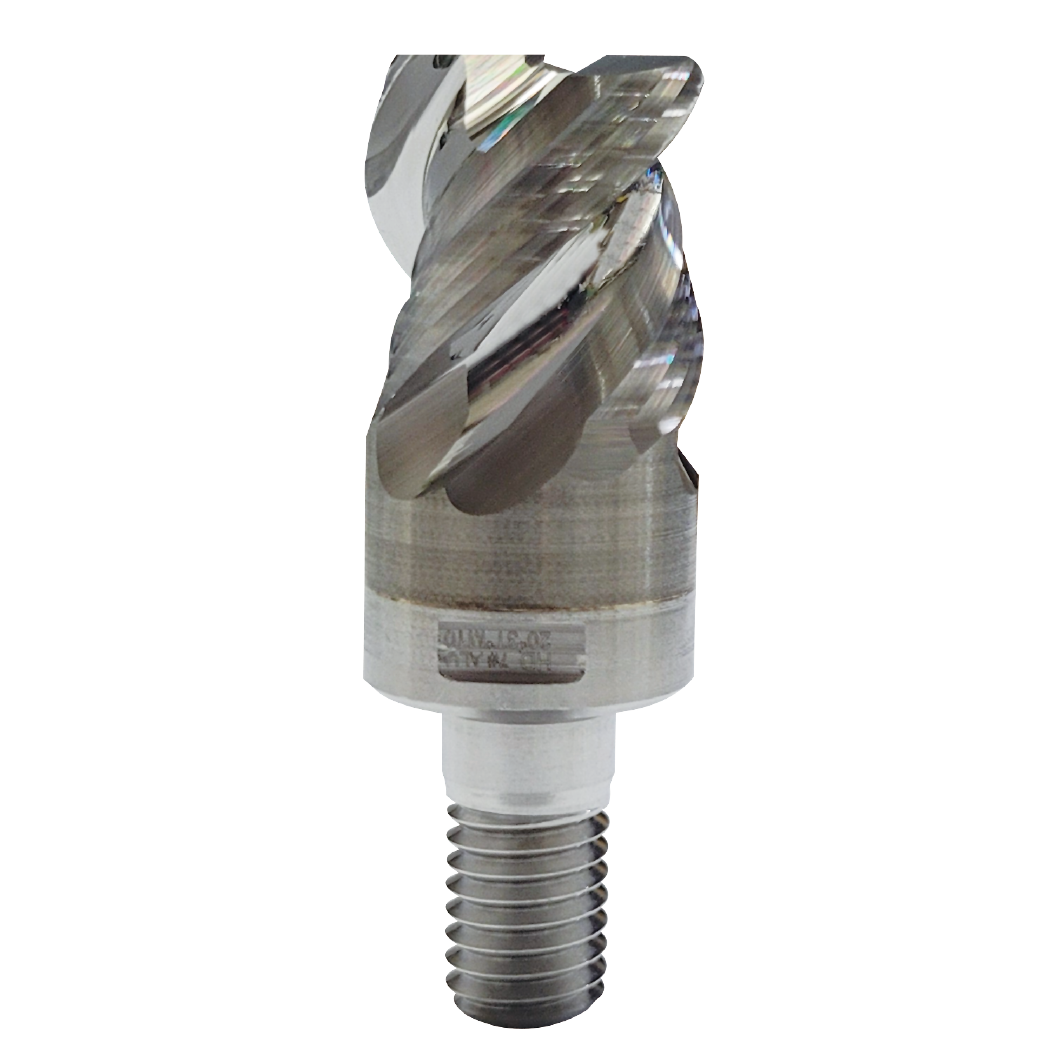

Model HAR Tungsten Carbide Corner Radius End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAR Tungsten Carbide Corner Radius End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAR Tungsten Carbide Corner Radius End Mill Bits with Threaded Shank for Aluminium Cutting
Model HAR Tungsten Carbide Corner Radius End Mill Bits with Threaded Shank for Aluminium Cutting

Model HAR Tungsten Carbide Corner Radius End Mill Bits with Threaded Shank for Aluminium Cutting

Product Model

Summary

Suitable for applications：

  • HRC45~ HRC65 steel
  • Aluminum alloy
Inquiry Prev Back Next

Specification

Material

Specification
Unit: mm

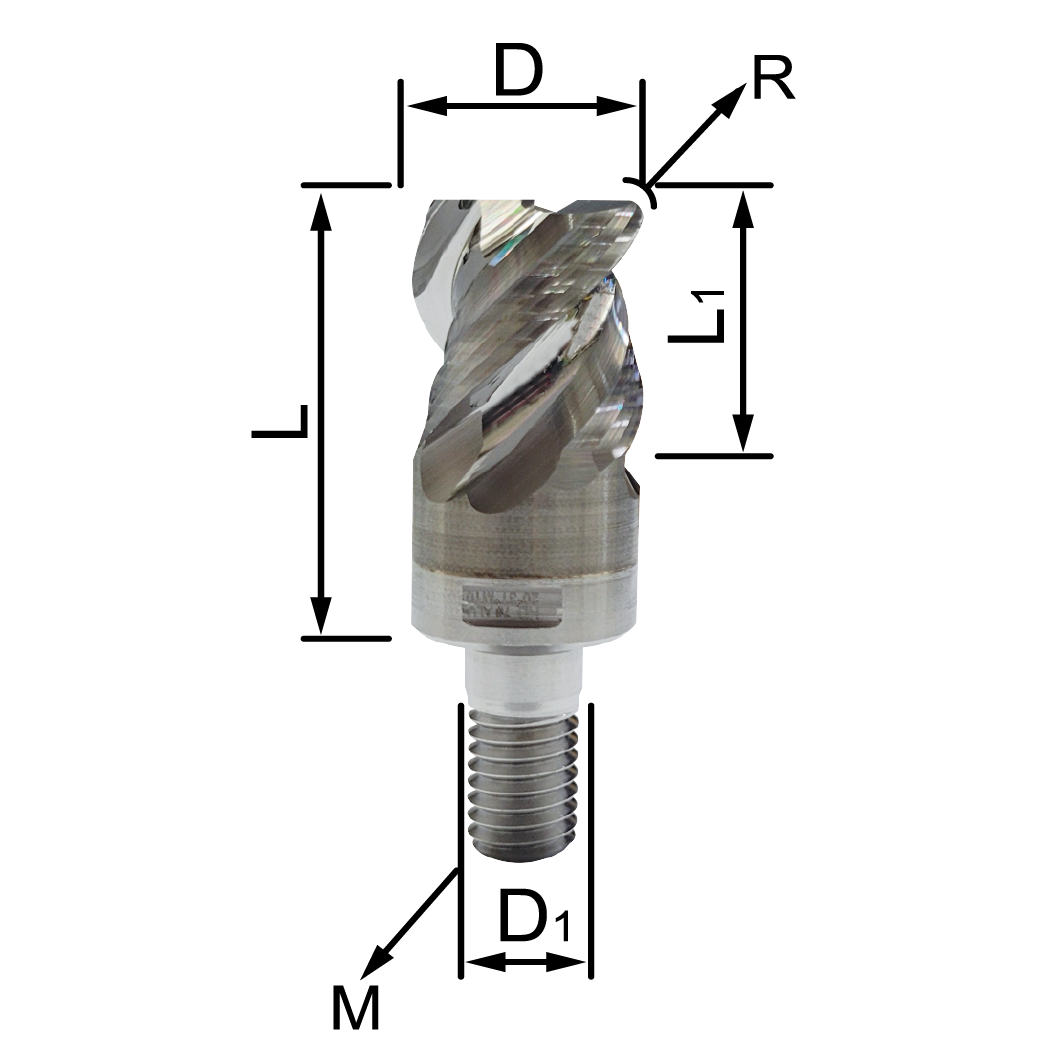

Model No. Dia x Corner R D x R Flute-Length L1 Overall Length L Neck Dia D1 Tread Size M remark
HAR 100103 10 x 1R 10 21 5.5 M05 　
HAR 100203 10 x 2R 10 21 5.5 M05 　
HAR 100303 10 x 3R 10 21 5.5 M05 　
HAR 120103 12 x 1R 12 25.5 6.5 M06 　
HAR 120153 12 x 1.5R 12 25.5 6.5 M06 　
HAR 120203 12 x 2R 12 25.5 6.5 M06 　
HAR 120303 12 x 3R 12 25.5 6.5 M06 　
HAR 160103 16 x 1R 16 30 8.5 M08 　
HAR 160153 16 x 1.5R 16 30 8.5 M08 　
HAR 160203 16 x 2R 16 30 8.5 M08 　
HAR 160303 16 x 3R 16 30 8.5 M08 　
HAR 200203 20 x 2R 20 38 10.5 M10 　
HAR 200303 20 x 3R 20 38 10.5 M10 　
HAR 200503 20 x 5R 20 38 10.5 M10 　
HAR 250203 25 x 2R 25 42 12.5 M12 　
HAR 250303 25 x 3R 25 42 12.5 M12 　
HAR 250503 25 x 5R 25 42 12.5 M12
