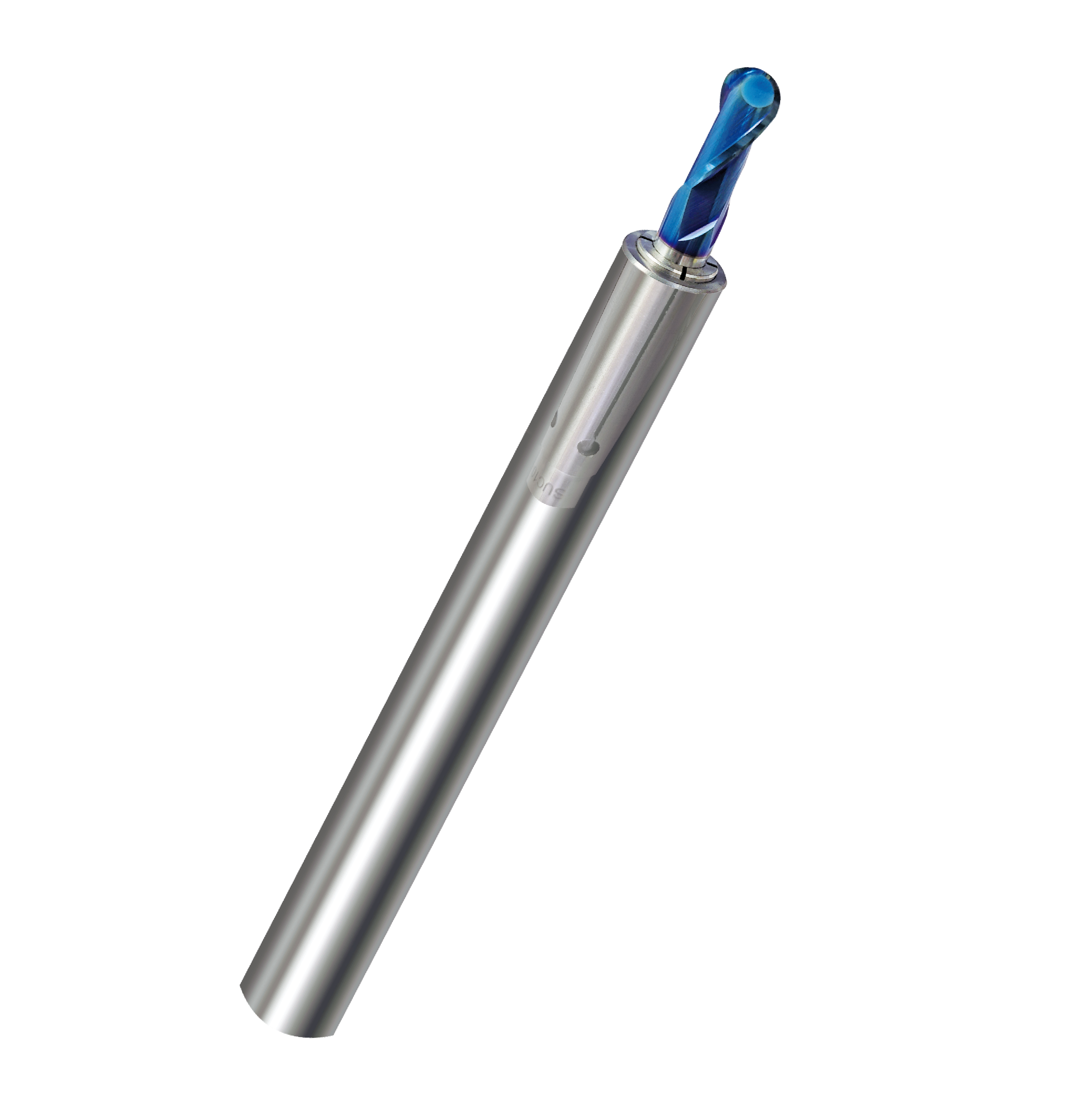

Tungsten Carbide End Mill Extension Holder - Back Pull
Model: HDC/HUC Tungsten Carbide Tools Holder – HDC/HUC Collect Chuck
Made of high quality Tungsten Carbide, have excellent Stiffness and great Anti-Vibration.
Stretch the depth processing, improve the precision of the surface. Achieve the ultra-long, ultra-deep, and ultra-high-precision machining.
| Specification | |||||||
| Unit: mm | |||||||

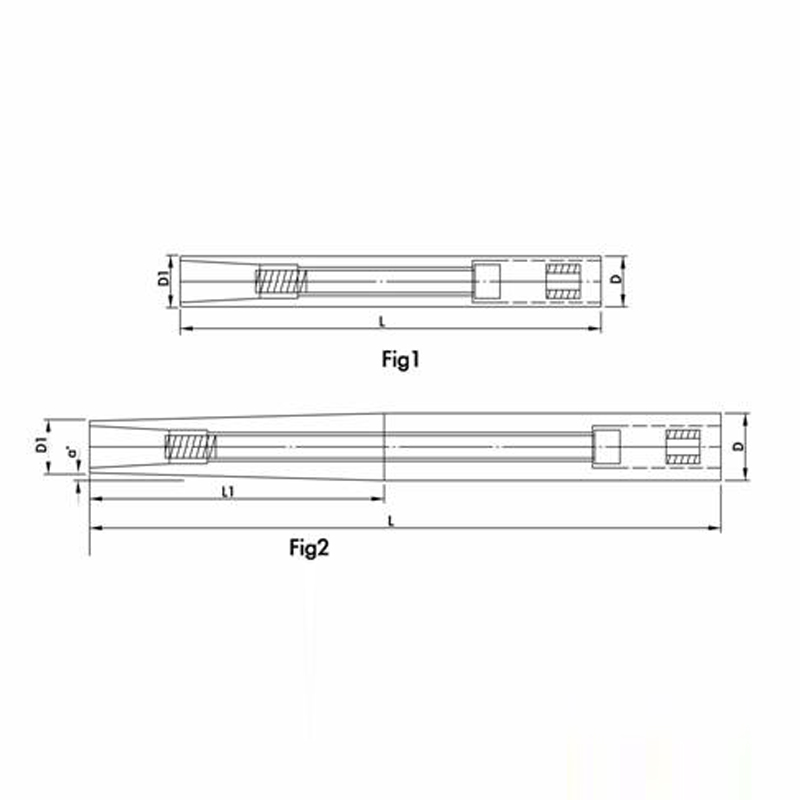

| Ordering code | L | L1 | D | D1 | a° | Fig | Note |
| HDC4-08-C08-100L | 100 | 8 | 8 | 1 | |||
| HDC4-10-C10-100L | 100 | 10 | 10 | 1 | |||
| HDC4-10-C10-150L | 150 | 10 | 10 | 1 | |||
| HDC4-10-C12-150L-DT60 | 150 | 60 | 12 | 10 | 1° | 2 | |
| HDC4-10-C16-200L-DT100 | 200 | 100 | 16 | 10 | 1.8° | 2 | |
| HDC6-12-C12-100L | 100 | 12 | 12 | 1 | |||
| HDC6-12-C12-150L | 150 | 12 | 12 | 1 | |||
| HDC6-12.8-C16-150L-DT60 | 150 | 60 | 16 | 12.8 | 1.7° | 2 | |
| HDC6-12.8-C16-200L-DT90 | 200 | 90 | 16 | 12.8 | 1.2° | 2 | |
| HDC6-12.8-C20-250L-DT110 | 250 | 110 | 20 | 12.8 | 1.9° | 2 | |
| HDC6L-12-C12-100L | 100 | 12 | 12 | 1 | |||
| HDC6L-12-C12-150L | 150 | 12 | 12 | 1 | |||
| HDC6L-12.8-C16-150L-DT60 | 150 | 60 | 16 | 12.8 | 1.7° | 2 | |
| HDC6L-12.8-C16-200L-DT90 | 200 | 90 | 16 | 12.8 | 1.2° | 2 | |
| HDC6L-12.8-C20-250L-DT110 | 250 | 110 | 20 | 12.8 | 1.9° | 2 | |
| HUC8-16-C16-120L | 120 | 16 | 16 | 1 | |||
| HUC8-16-C16-150L | 150 | 16 | 16 | 1 | |||
| HUC8-16-C16-200L | 200 | 16 | 16 | 1 | |||
| HUC8-16-C20-200L-DT80 | 200 | 80 | 20 | 16 | 1.5° | 2 | |
| HUC8-16-C20-250L-DT100 | 250 | 100 | 20 | 16 | 1.2° | 2 | |
| HUC10-20-C20-150L | 150 | 20 | 20 | 1 | |||
| HUC10-20-C20-200L | 200 | 20 | 20 | 1 | |||
| HUC10-20-C20-250L | 250 | 20 | 20 | 1 | |||
| HUC10-23-C25-250L-DT120 | 250 | 120 | 25 | 23 | 0.5° | 2 | |
| HUC10-23-C25-300L-DT120 | 300 | 120 | 25 | 23 | 0.5° | 2 |
