High Anti-Vibration and attrition resistance, will be improve tool life and machining accuracy of surface.
Suitable for slot milling and side milling.

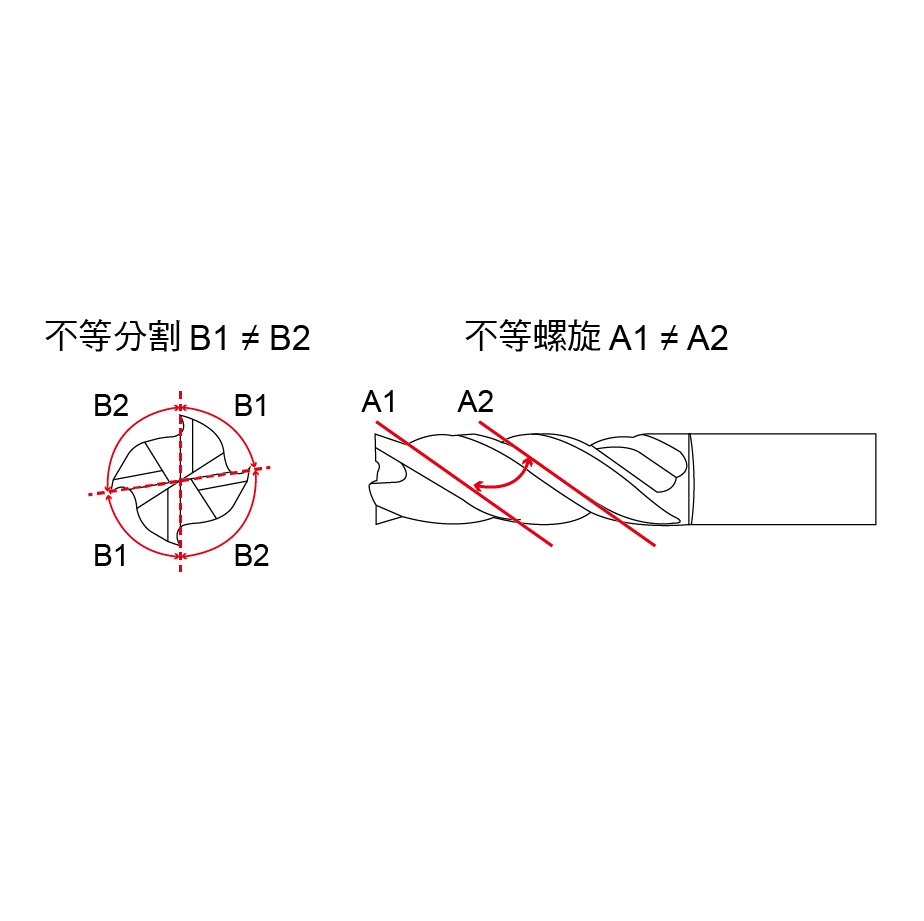

Special R & D design will stable cutting performance, reduce cutting resistance and anti Shock-Proof Milling Cutter Series

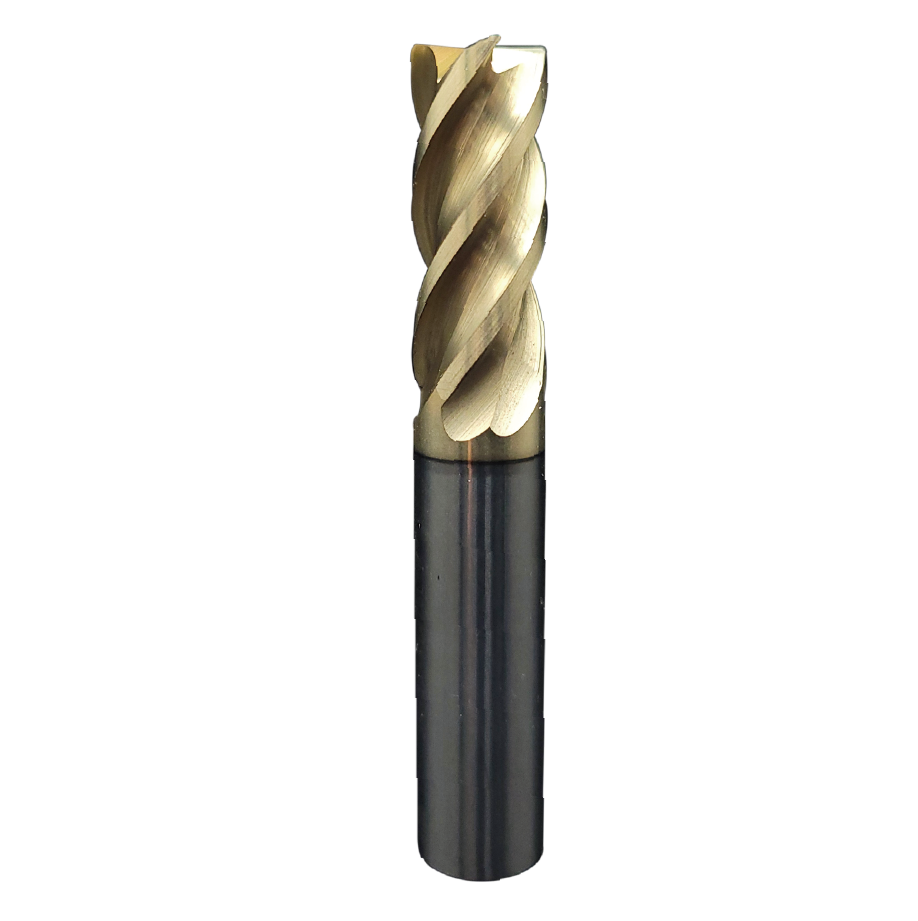

Model: 2D ERLD (Highly-Efficiency Anti-Vibration Operation, Long Flute Length),4 Flutes
vibration, also will have superior attrition resistance and stability.
Suitable for applications：
| Specification | ||||||
| Model No. | Diameter D | Flute Length I | Chamfer C | Shank Diameter d | Overall Length L | price |
| Unit：mm | ||||||
| 2D ERLD 0104GR | 1 | 5 | 4 | 50 | ||
| 2D ERLD 0154GR | 1.5 | 8 | 4 | 50 | ||
| 2D ERLD 0204GRD6 | 2 | 10 | 6 | 50 | ||
| 2D ERLD 0254GRD6 | 2.5 | 13 | 6 | 50 | ||
| 2D ERLD 0304GRD6 | 3 | 15 | 6 | 50 | ||
| 2D ERLD 0404GRD6 | 4 | 20 | 6 | 75 | ||
| 2D ERLD 0504GR | 5 | 25 | 6 | 75 | ||
| 2D ERLD 0604GR | 6 | 30 | 0.2 | 6 | 75 | |
| 2D ERLD 0704GR | 7 | 35 | 0.2 | 8 | 100 | |
| 2D ERLD 0804GR | 8 | 40 | 0.2 | 8 | 100 | |
| 2D ERLD 0904GR | 9 | 45 | 0.2 | 10 | 100 | |
| 2D ERLD 1004GR | 10 | 50 | 0.2 | 10 | 100 | |
| 2D ERLD 1204GR | 12 | 50 | 0.2 | 12 | 100 | |
| 2D ERLD 1604GR | 16 | 80 | 0.2 | 16 | 150 | |
| 2D ERLD 2004GR | 20 | 80 | 0.2 | 20 | 150 |
