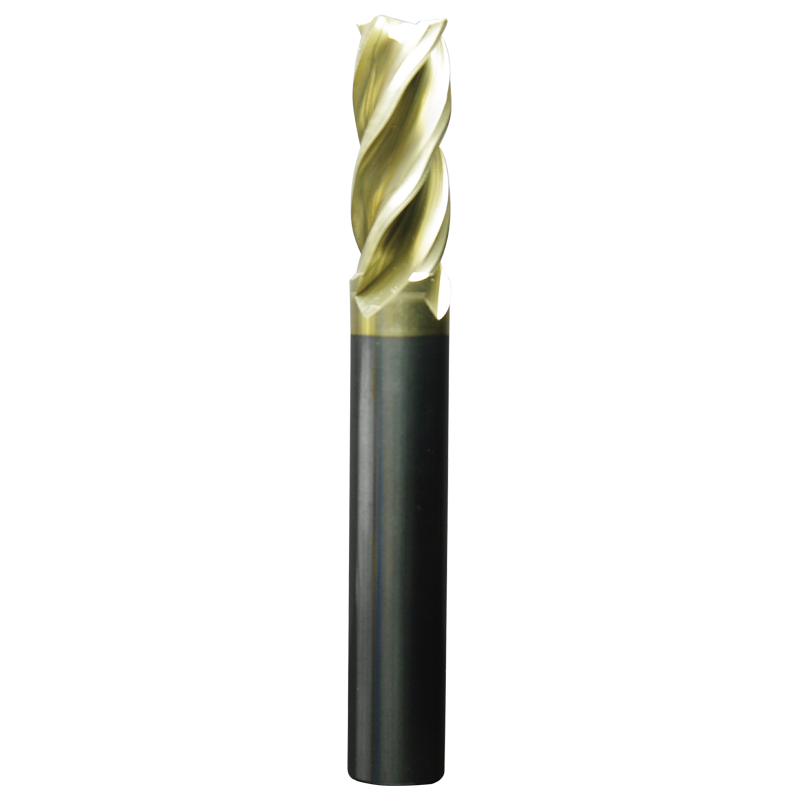

Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes
Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes
Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes
Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes
Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes
Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes

Model 2D SEW (Highly-Efficiency & Anti-Vibration Operation, Wave Edge),4 Flutes

Product Model

Summary

It has high crack toughness and wear resistance.

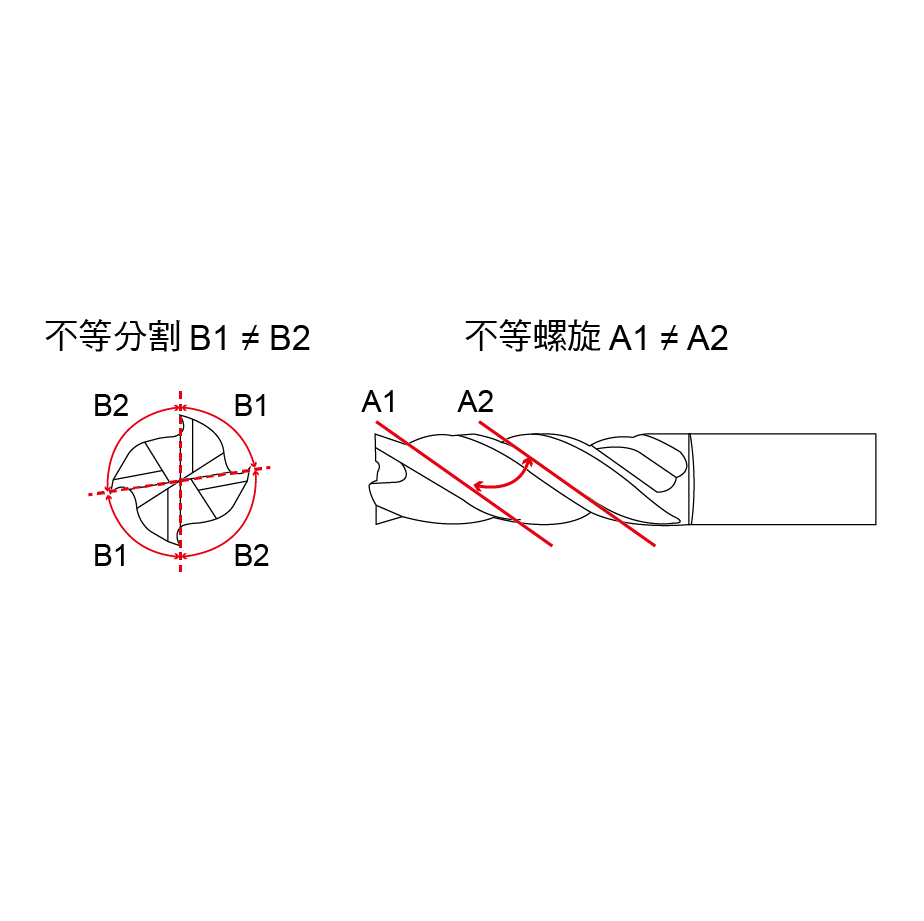

Characteristic wavy blade design.
High quality, high efficiency, improve production efficiency.

Suitable for applications:

  • Difficult cutting materials
  • Stainless steel
  • Titanium alloy
  • Alloy steel
  • General steel
  • Pre-hardened steel
  • Heat-resistant alloy steel
  • Copper alloy
  • Aluminum alloy

Specification

Material

Specification
Unit:mm

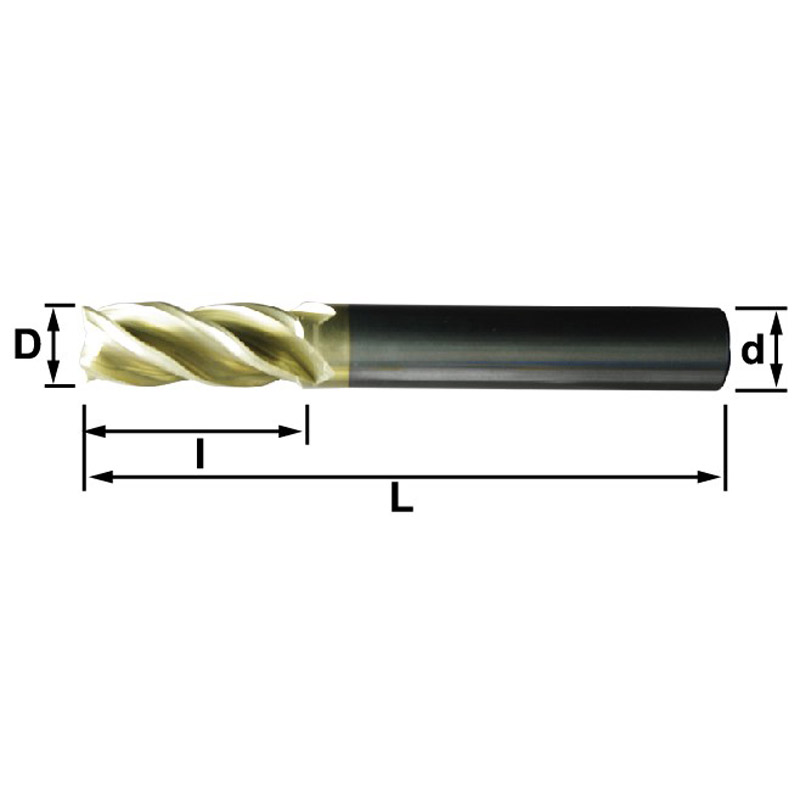

Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price
2D SEW 0204GR 2 6 4 50
2D SEW 0254GR 2.5 7 4 50
2D SEW 0304GR 3 8 4 50
2D SEW 0404GR 4 10 4 50
2D SEW 0504GR 5 13 6 50
2D SEW 0604GR 6 15 6 50
2D SEW 0704GR 7 18 8 60
2D SEW 0804GR 8 20 8 60
2D SEW 0904GR 9 25 10 75
2D SEW 1004GR 10 25 10 75
2D SEW 1104GR 11 30 12 75
2D SEW 1204GR 12 30 12 75
2D SEW 1604GR 16 50 16 100
2D SEW 2004GR 20 50 20 100
