| Specification | |||||
| Unit: mm | |||||

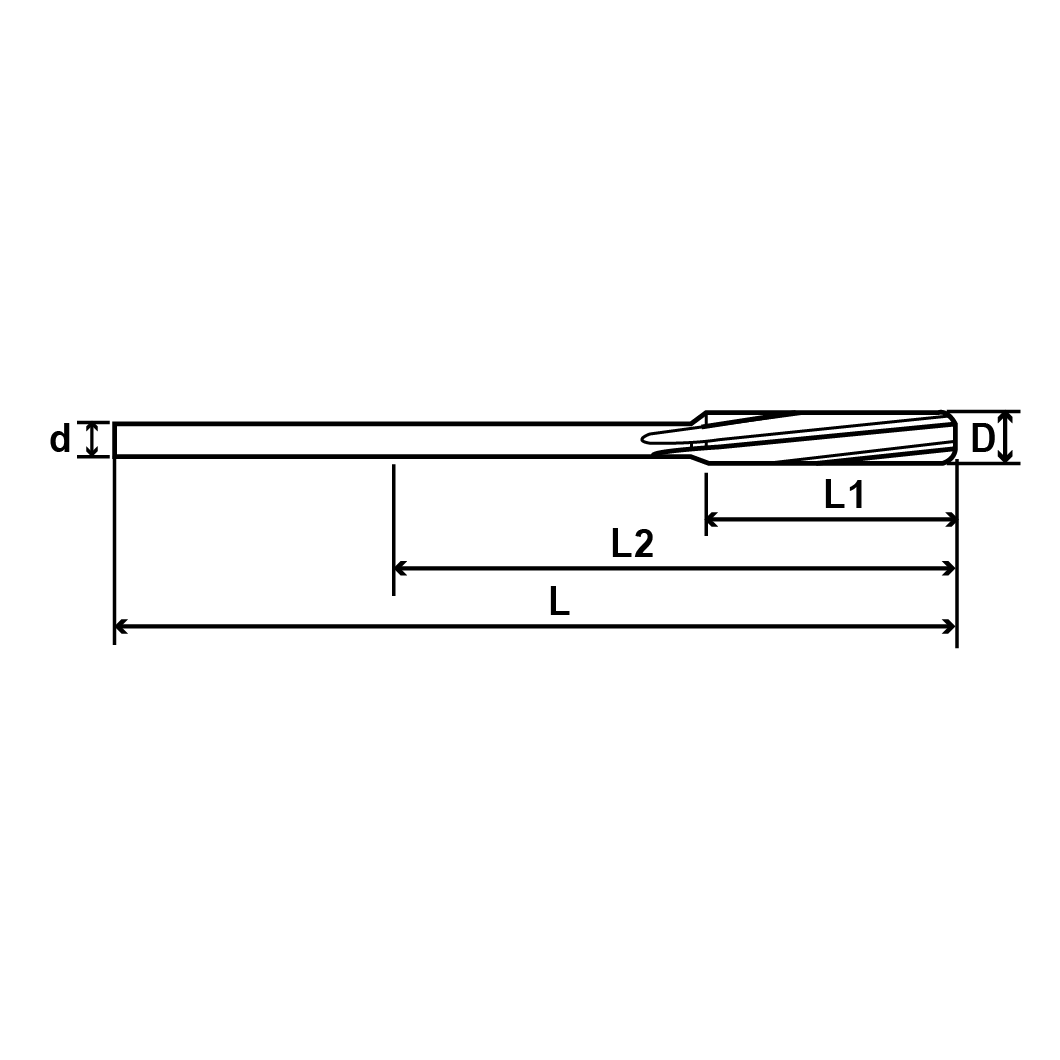

| Diameter | Flute Length | Effective Length | Teeth | Overall Length | price |
| D | L1 | L2 | T | L | |
| 1.95 ~ 1.99 | 11 | 24 | 4 | 49 | |
| 2.95 ~ 2.99 | 15 | 32 | 4 | 61 | |
| 3.95 ~ 3.99 | 19 | 43 | 4 | 75 | |
| 4.95 ~ 4.99 | 23 | 52 | 4 | 86 | |
| 5.95 ~ 5.99 | 26 | 57 | 6 | 93 | |
| 6.95 ~ 6.99 | 31 | 69 | 6 | 109 | |
| 7.95 ~ 7.99 | 33 | 75 | 6 | 117 | |
| 8.95 ~ 8.99 | 36 | 81 | 6 | 125 | |
| 9.95 ~ 9.99 | 38 | 87 | 6 | 133 | |
| 10.95 ~ 10.99 | 41 | 96 | 6 | 142 | |
| 11.95 ~ 11.99 | 44 | 105 | 6 | 151 | |
| 12.95 ~ 12.99 | 44 | 105 | 6 | 151 |
