Solid Carbide Machine Reamers
Solid Carbide Machine Reamers
Solid Carbide Machine Reamers
Solid Carbide Machine Reamers

Solid Carbide Machine Reamers

Product Model

Summary

Suitable for applications:

  • Carbon steel
  • Alloy steel
  • Aluminum alloy
  • HRC50 steel
Inquiry Prev Back Next

Specification

Material

Specification
Unit: mm

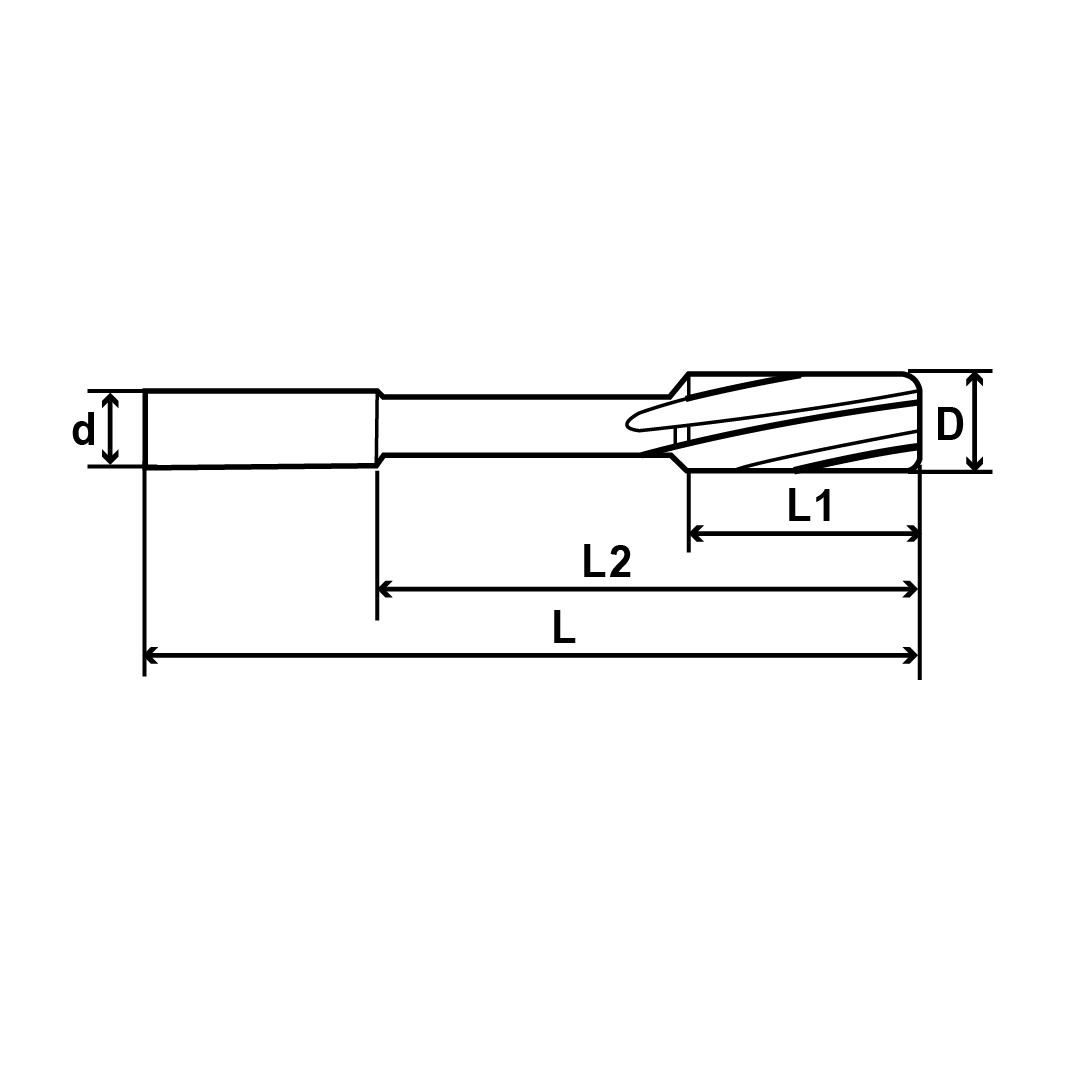

Diameter Flute Length Effective Length Shank Diameter Teeth Overall Length price
D L1 L2 d T L
　
1.5 8 18 3 4 50 　
1.6 9 20 3 4 50 　
1.7 9 20 3 4 50 　
1.8 10 22 3 4 50 　
1.9 10 22 3 4 50
