| Specification | ||||||
| Unit: mm | ||||||

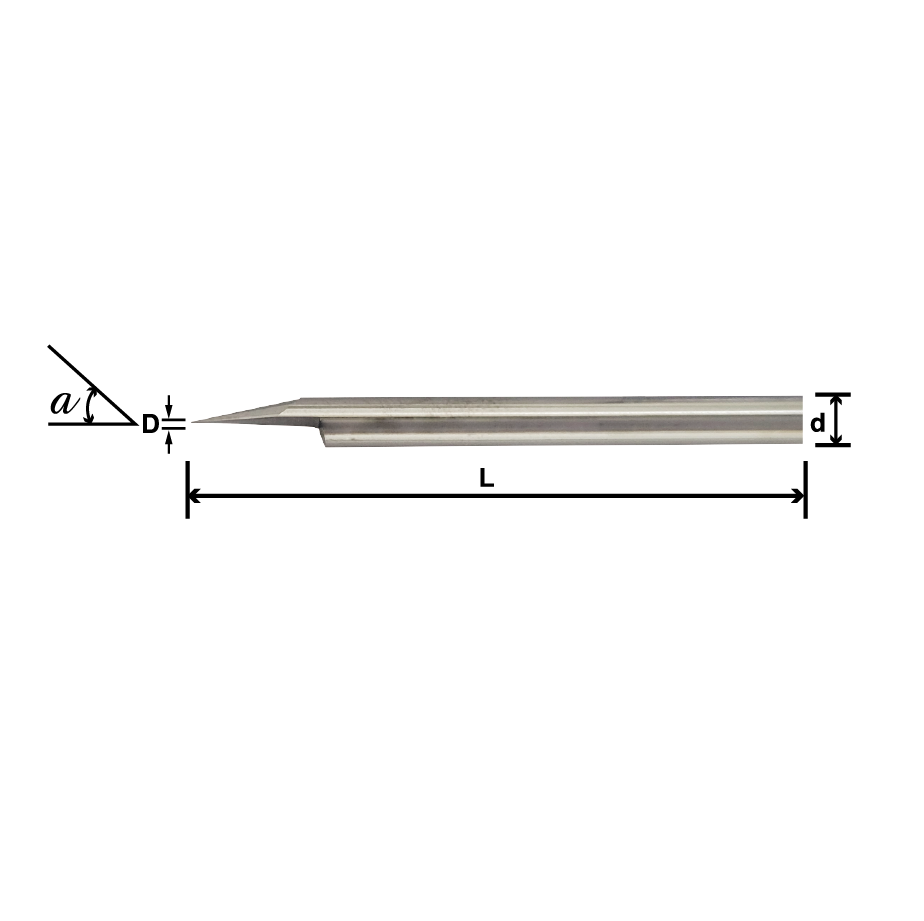

| Model No. | Outside Diameter D | Taper Angle α | Flute T | Shank Diameter d | Overall Length L | price |
| 5 TTA 0011501 | 0.1 | 15° | 1 | 4 | 50 | |
| 5 TTA 0021501 | 0.2 | 15° | 1 | 4 | 50 | |
| 5 TTA 0031501 | 0.3 | 15° | 1 | 4 | 50 | |
| 5 TTA 0041501 | 0.4 | 15° | 1 | 4 | 50 | |
| 5 TTA 0051501 | 0.5 | 15° | 1 | 4 | 50 |
