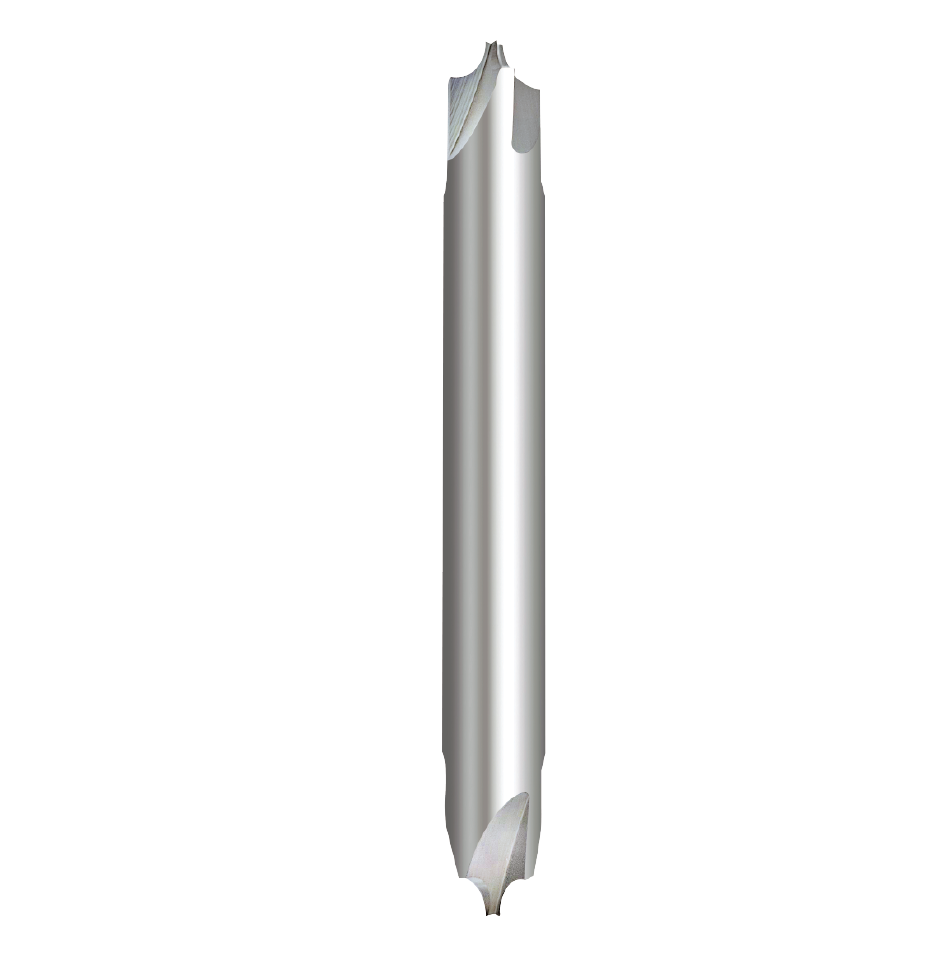

Model 2 RC Tungsten Carbide Outer Radius End Mill

Model 2 RC Tungsten Carbide Outer Radius End Mill

Model 2 RC Tungsten Carbide Outer Radius End Mill

Model 2 RC Tungsten Carbide Outer Radius End Mill

Model 2 RC Tungsten Carbide Outer Radius End Mill

Product Model

Summary

Suitable for applications：

HRC45 The following steels

Inquiry Prev Next

Specification

Material

Specification

Unit: mm

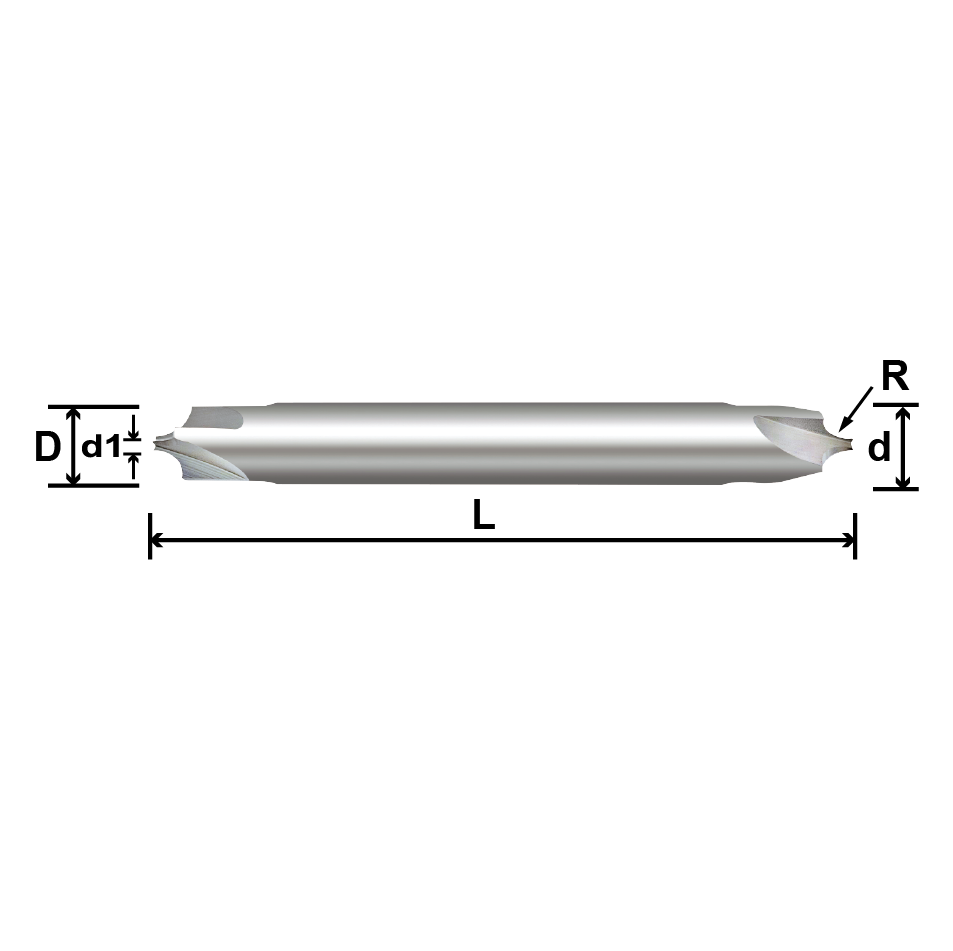

Model No.	Radius R	Top Diameter d1	Outside Diameter D	Flute T	Shank Diameter d	Overall Length L	price
2 RC 0104	0.5R	1.5	2.7	4	4	50
2 RC 1504	0.75R	1.5	3.2	4	4	50
2 RC 0204	1R	1.5	3.7	4	4	50
2 RC 0254D6	1.25R	1.5	4.2	4	6	50
2 RC 0304D6	1.5R	1.5	4.7	4	6	50
2 RC 0354D6	1.75R	1.5	5.2	4	6	50
2 RC 0404D6	2R	1.5	5.7	4	6	50
2 RC 0504D8	2.5R	1.5	6.7	4	8	60
2 RC 0604D8	3R	1.5	7.7	4	8	60
2 RC 0704D10	3.5R	2	9.2	4	10	75
2 RC 0804D12	4R	2	10.2	4	12	75
2 RC 1004D14	5R	3	13.2	4	14	100
2 RC 1204D16	6R	3	15.2	4	16	100
