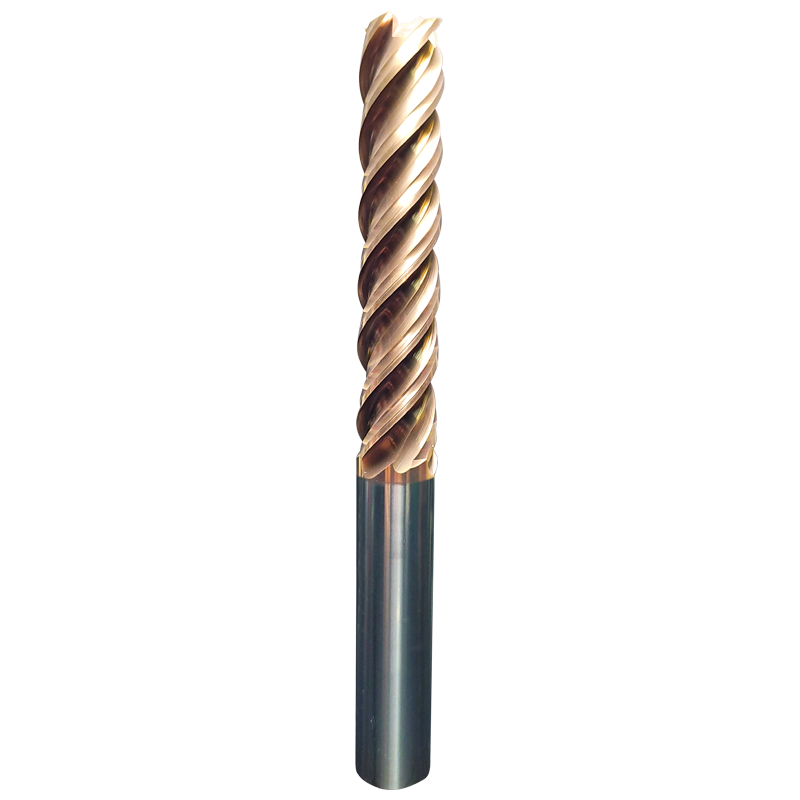

Model 2 EALD (Highly-Efficiency Anti-Vibration Operation, Long Flute Length), 4 Flutes

Model 2 EALD (Highly-Efficiency Anti-Vibration Operation, Long Flute Length), 4 Flutes

Name: EUCOM
Address: No. 29, Heli St., Taiping Dist.,, Taichung City 411 , Taiwan (R.O.C.)
Telephone: 04-22702039

Product Model

Summary

Shock-Proof Milling Cutter Series

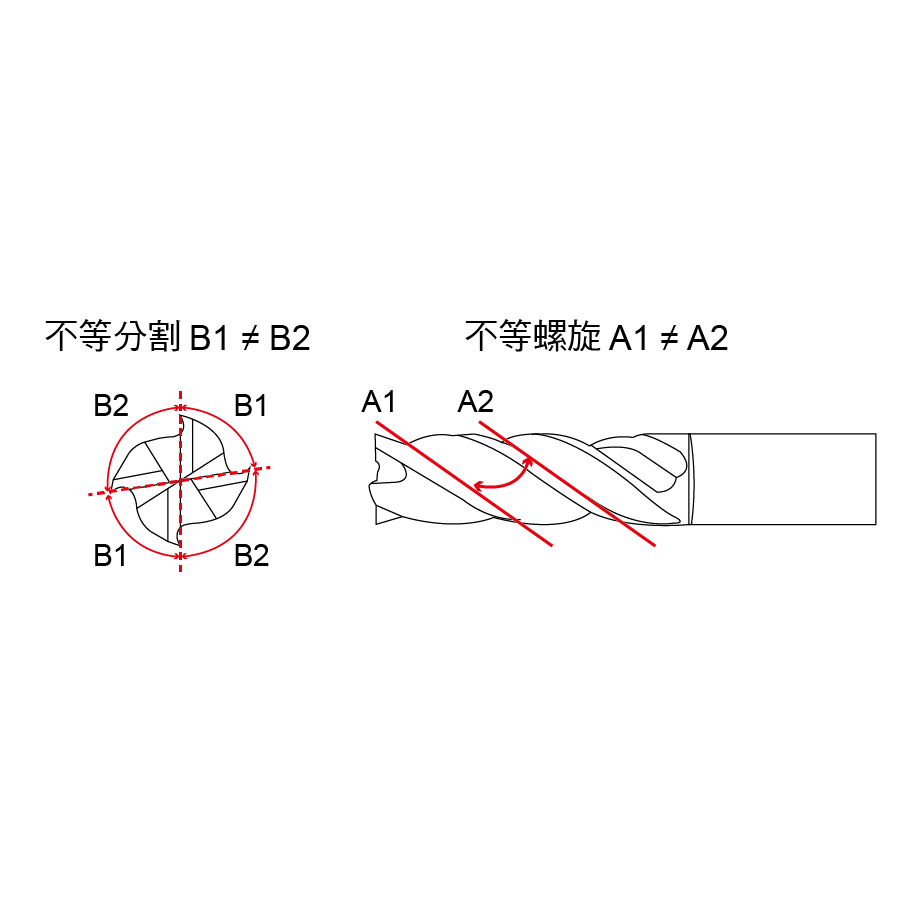

Special R & D design will stable cutting performance, reduce cutting resistance and anti vibration, also will have superior attrition resistance and stability.

Pre-hardened steel
General steel
Heat-resistant steel

Inquiry Prev Back Next

Specification

Material

Specification

Unit：mm

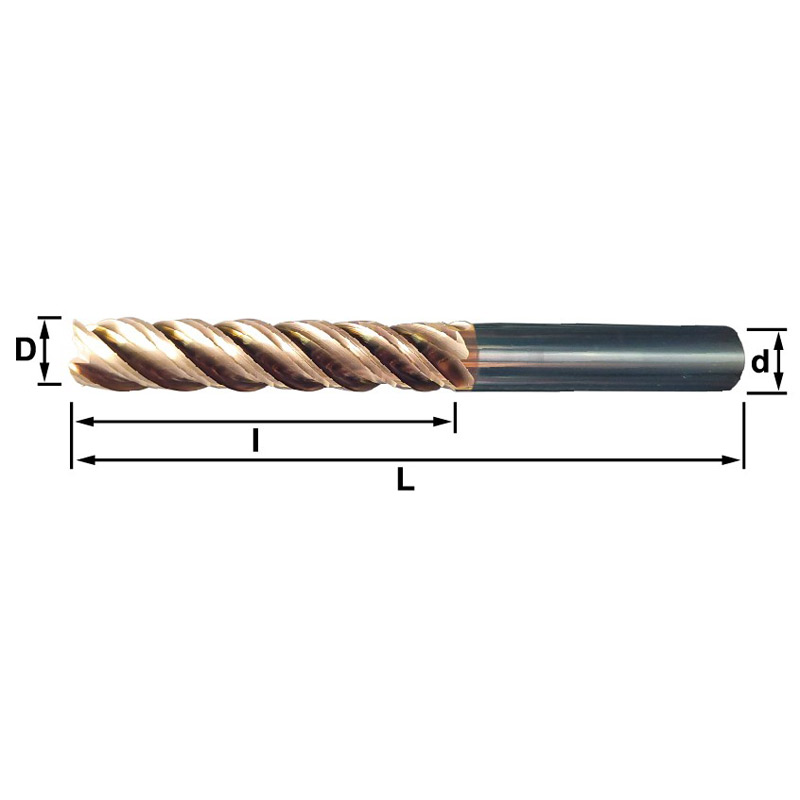

Model No.	Diameter D	Flute Length I	Shank Diameter d	Overall Length L
2 EALD 0304TXD6	3	15	6	50
2 EALD 0404TXD6	4	20	6	75
2 EALD 0504TX	5	25	6	75
2 EALD 0604TX	6	30	6	75
2 EALD 0704TX	7	35	8	100
2 EALD 0804TX	8	40	8	100
2 EALD 0904TX	9	45	10	100
2 EALD 1004TX	10	50	10	100
2 EALD 1204TX	12	50	12	100
2 EALD 1604TX	16	80	16	150
2 EALD 2004TX	20	80	20	150
