| Specification | ||||||||
| Unit: mm | ||||||||

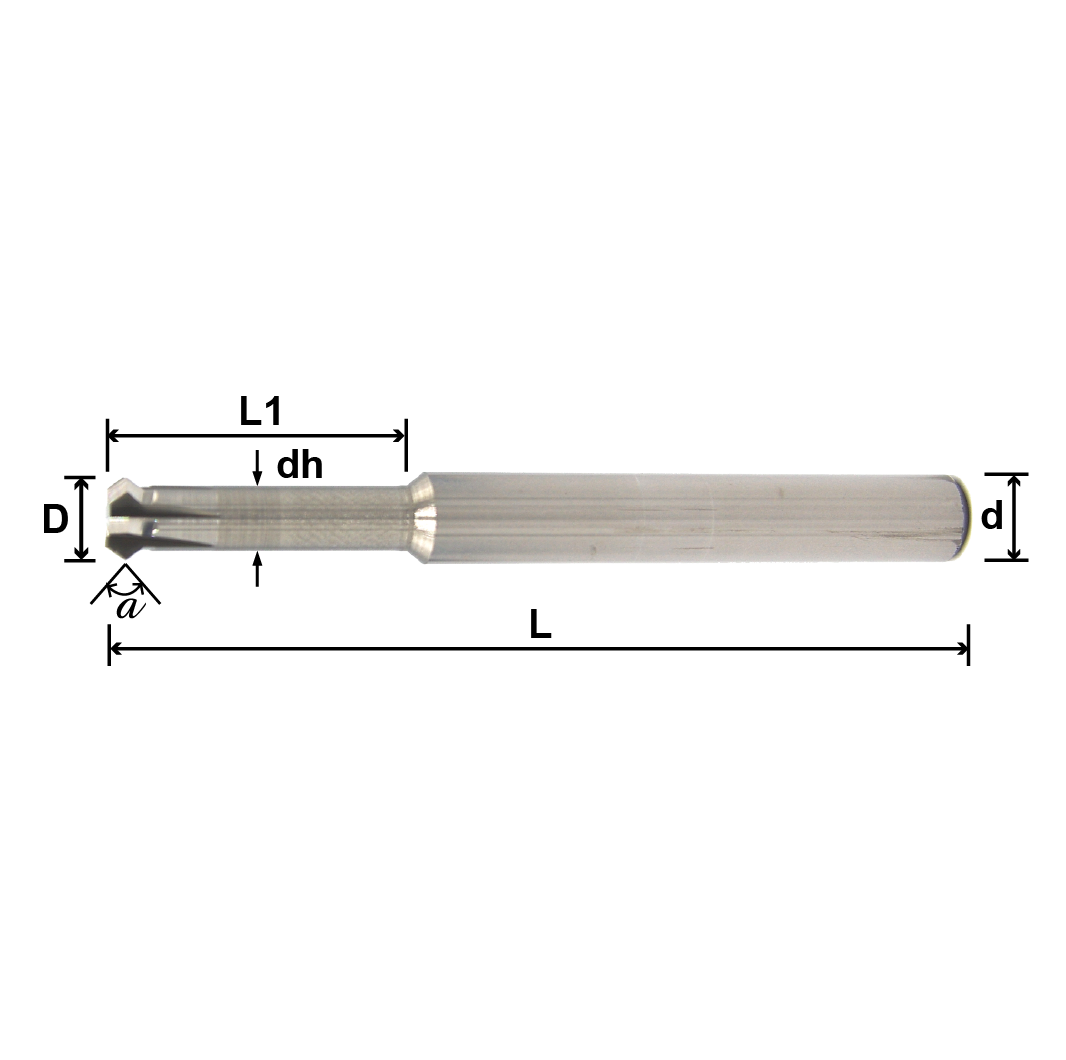

| Model No. | Top Angle α | Outside Diameter D | Neck Diameter dh | Neck Length L1 | Flute T | Shank Diameter d | Overall Length L | price |
| 2 2R2UD 0400904D6 | 90° | 4 | 2 | 10 | 4 | 6 | 75 | |
| 2 2R2UD 0600904 | 90° | 6 | 3 | 15 | 4 | 6 | 75 | |
| 2 22R2UD 0800904 | 90° | 8 | 4 | 20 | 4 | 8 | 75 | |
| 2 2R2UD 1000904 | 90° | 10 | 5 | 25 | 4 | 10 | 75 | |
| 2 2R2UD 1200904 | 90° | 12 | 6 | 30 | 4 | 12 | 75 |
