Product Model

Summary

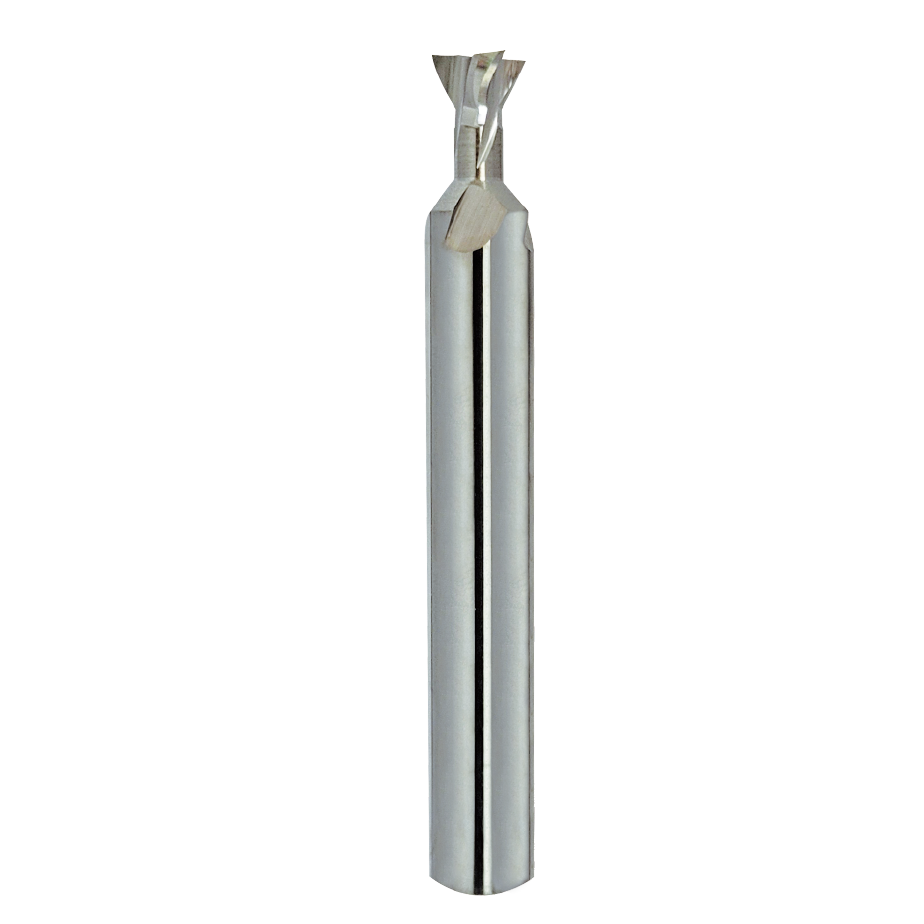

Model: Carbide Dove-Tail End Mills

Inquiry Prev Back Next

Specification

Material

Specification

Unit: mm

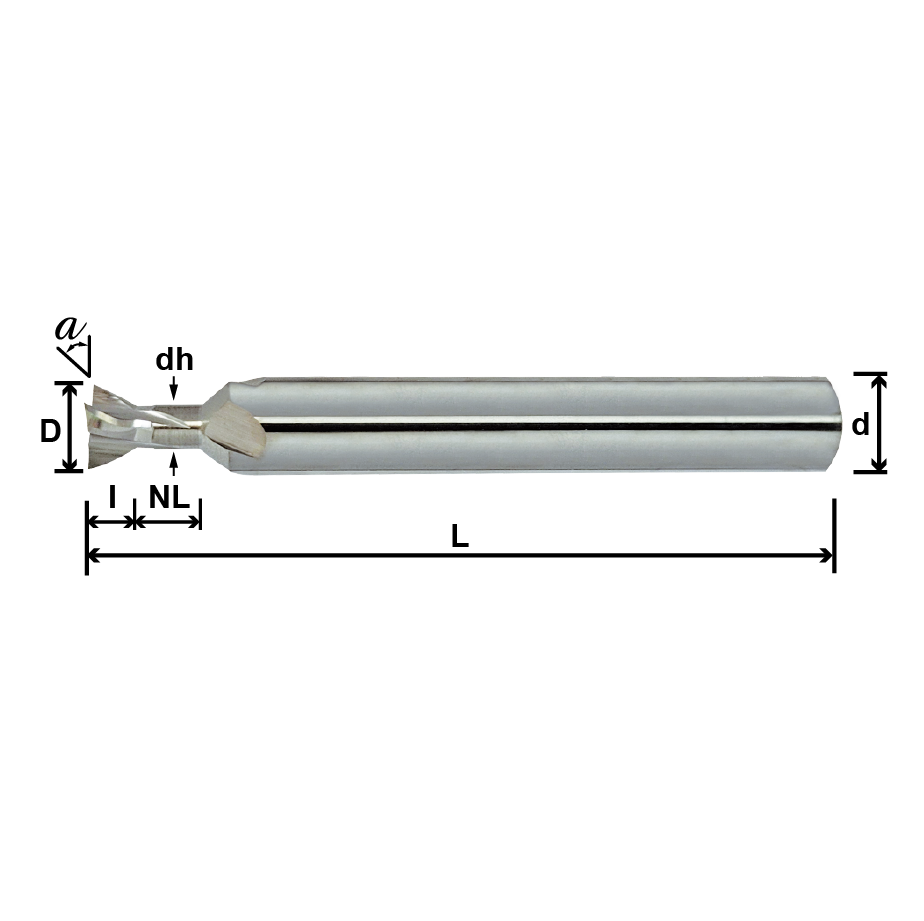

Model No.	Diameter D	Top Angle α	Flute Length I	Neck Diameter dh	Neck Length NL	Teeth T	Shank Diameter d	Overall Length L	price
2 RJ 030454D6	3	45°	0.8	1.4	3	4	6	60
2 RJ 040454	4	45°	1	2	3	4	4	50
2 RJ 040454D6	4	45°	1	2	3	4	6	60
2 RJ 050454	5	45°	1.2	2.5	4	4	6	60
2 RJ 060454	6	45°	1.4	3	4	4	6	60
2 RJ 080454	8	45°	1.9	4	5	4	8	60
2 RJ 100454	10	45°	2.4	5	6	4	10	75
2 RJ 120454	12	45°	2.9	6	7	4	12	75
2 RJ 030604D6	3	60°	1.2	1.5	3	4	6	60
2 RJ 040604D6	4	60°	1.6	2	3.5	4	6	60
2 RJ 050604	5	60°	2.2	2.3	4	4	6	60
2 RJ 060604	6	60°	2.7	2.7	4	4	6	60
2 RJ 080604	8	60°	3.7	3.6	5	4	8	60
2 RJ 100604	10	60°	4.6	4.5	6	4	10	75
2 RJ 120604	12	60°	5.6	5.4	7	4	12	75
