| Specification | |||||||||
| Unit: mm | |||||||||

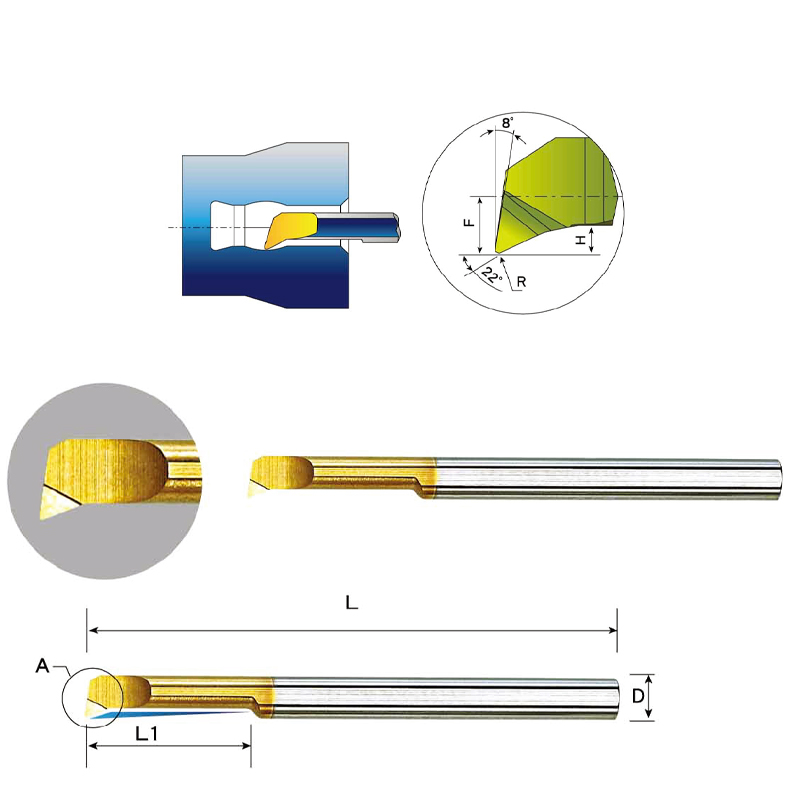

| Model No. | D | L | L1 | R | H | F | Min Aperture | handle | price |
| MPR 1.5 R0.1 L6 | 3 | 50 | 6 | 0.1 | 0.3 | 0.7 | 1.5 | SIM 0020 H3 | |
| MPR 2 R0.1 L10 | 3 | 50 | 10 | 0.1 | 0.5 | 0.8 | 2.1 | SIM 0020 H3 | |
| MPR 3 R0.1 L15 | 3 | 50 | 15 | 0.1 | 0.7 | 1.3 | 3.1 | SIM 0020 H3 | |
| MPR 4 R0.1 L22 | 4 | 50 | 22 | 0.1 | 0.8 | 1.7 | 4.1 | SIM 0020 H4 | |
| MPR 6 R0.2 L22 | 6 | 50 | 22 | 0.2 | 1.4 | 2.8 | 6.1 | SIM 0020 H6 | |
| MPR 8 R0.2 L22 | 8 | 60 | 22 | 0.2 | 1.6 | 3.8 | 8.1 | SIM 0020 H8 | |
| MPR 10 R0.2 L35 | 10 | 75 | 35 | 0.2 | 2 | 4.8 | 10.1 | SIM 0020 H10 |
