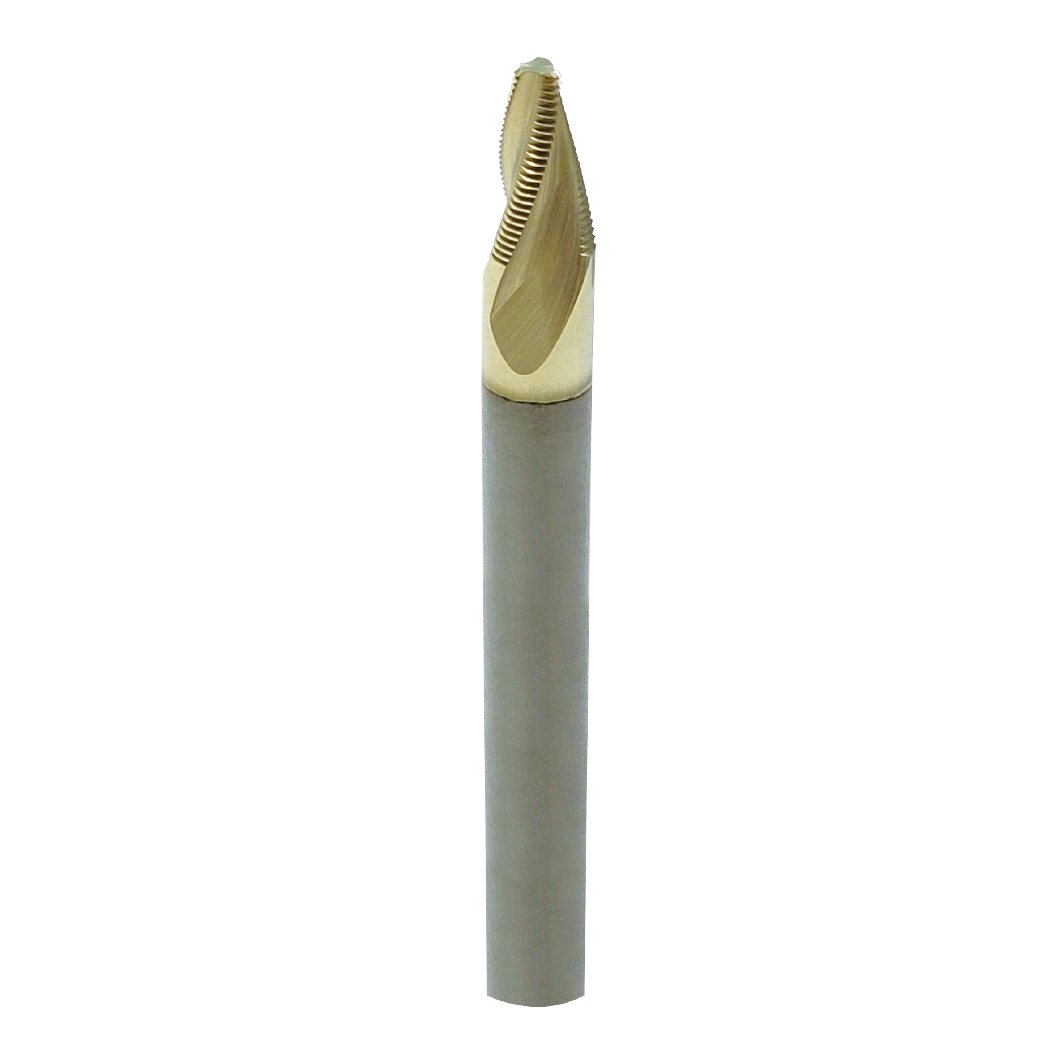

Model VUC Taper Thread Milling Cutter
Product Model

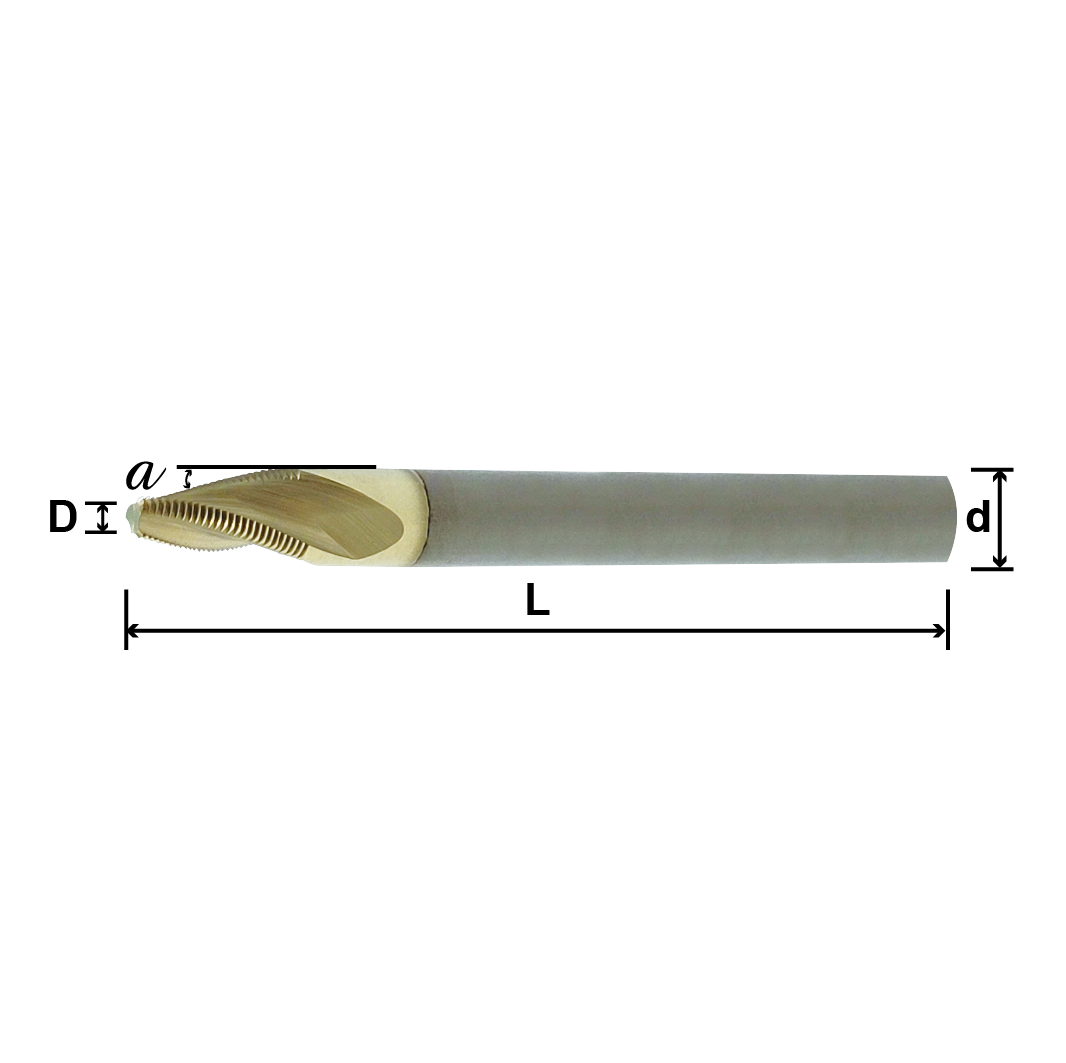

| Specification |
|
|
|
|
|
|
|
|
| Unit: mm |
|
|
|
|
|
|
|
|
| Model No. |
D |
MM |
a |
I |
T |
d |
L |
price |
| Diameter |
Pitch |
Taper |
Flute Length |
Teeth |
Shank Diameter |
Overall Length |
|
|
|
|
|
|
|
|
|
| 5 VUC 0120300103GR |
1.2 |
0.3 |
10° |
7.9 |
3T |
4 |
50 |
|
| 5 VUC 0150300103GR |
1.5 |
0.3 |
10° |
7.04 |
3T |
4 |
50 |
|
| 5 VUC 0150375103GR |
1.5 |
0.375 |
10° |
7.04 |
3T |
4 |
50 |
|
| 5 VUC 0150330103GR |
1.5 |
0.33 |
10° |
7.04 |
3T |
4 |
50 |
|
| 5 VUC 0180430103GR |
1.8 |
0.43 |
10° |
11.9 |
3T |
6 |
50 |
|
| 5 VUC 0230400103GR |
2.3 |
0.4 |
10° |
10.46 |
3T |
6 |
50 |
|
| 5 VUC 0260400103GR |
2.6 |
0.4 |
10° |
9.6 |
3T |
6 |
50 |
|
| 5 VUC 0300333083GR |
3 |
0.333 |
8° |
10.65 |
3T |
6 |
50 |
|
| 5 VUC 03004167083GR |
3 |
0.4167 |
8° |
10.65 |
3T |
6 |
50 |
|
