Threading

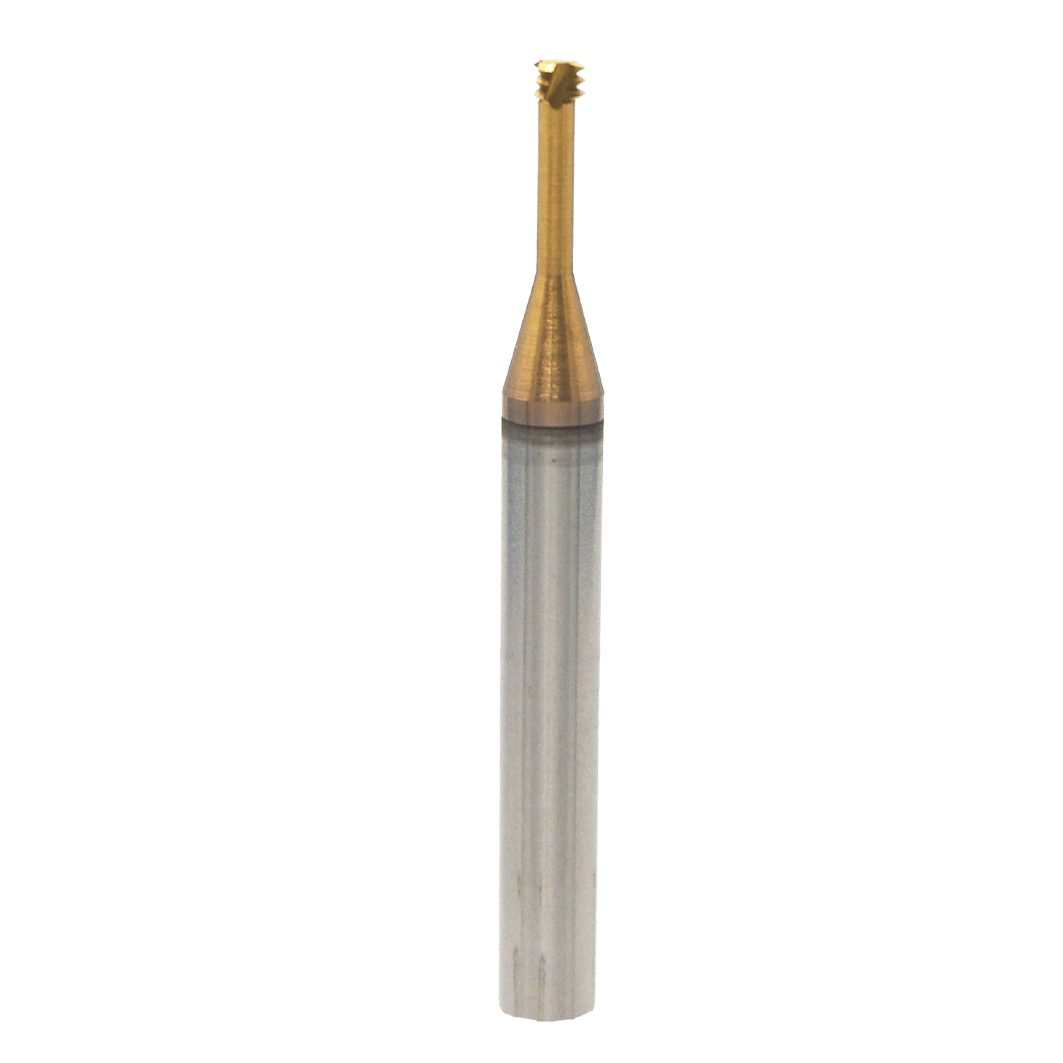

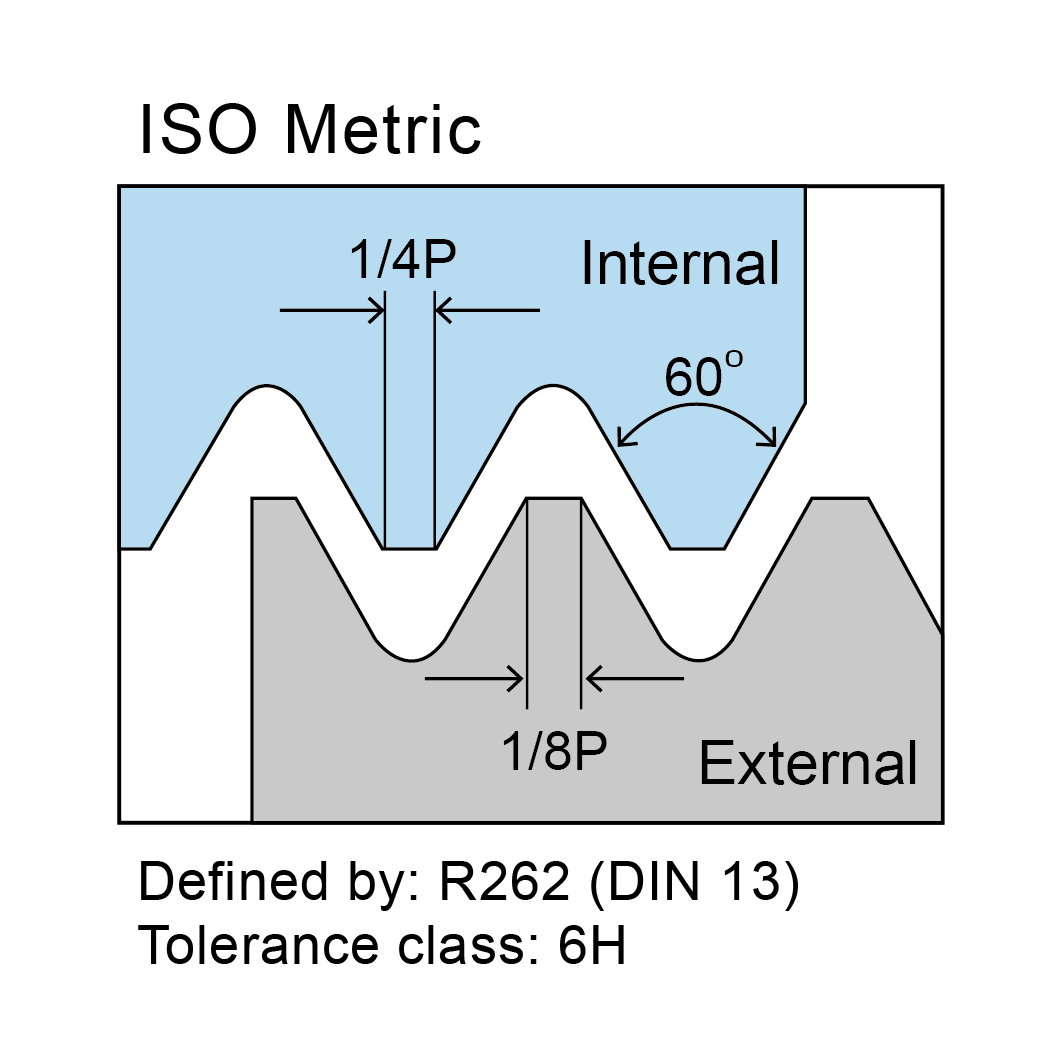

Model: VUA (Thread Milling Tools-Helical Flutes-ISO Metric) Three teeth
Full-tooth tungsten steel spiral milling cutter has flexible and wide range of processing applications. Milling and trimming can be completed at one time, saving processing time.
| Specification | ||||||||
| Unit: mm | ||||||||

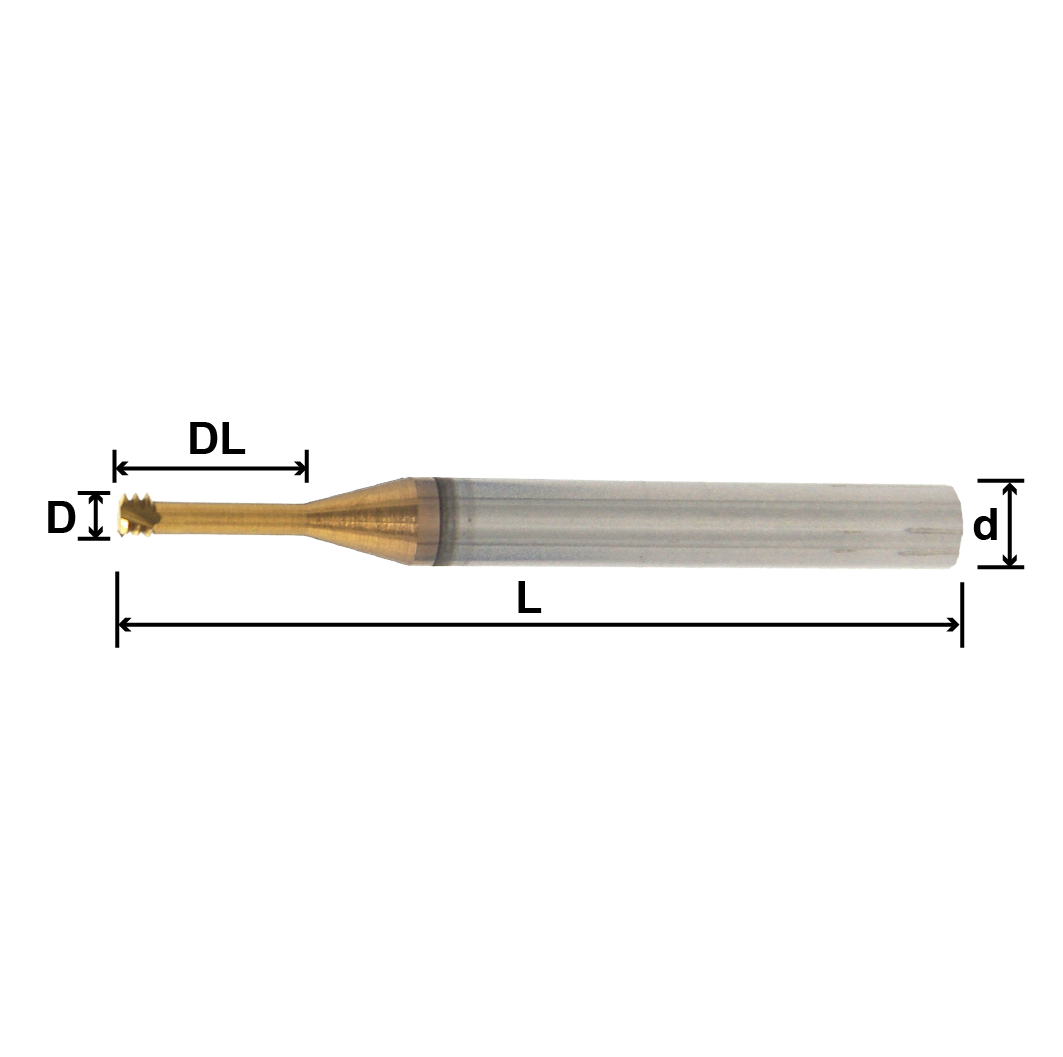

| Model No. | Thread | Pitch | Diameter D | Effective Length DL | Flute T | Shank Diameter d | Overall Length L | price |
| 5 VUA 01050303TX | M1.4 x 0.3 | 0.3 | 1.05 | 2.8 | 3T | 4 | 50 | |
| 5 VUA 01200353TX | M1.6 x 0.35 | 0.35 | 1.2 | 3.2 | 3T | 4 | 50 | |
| 5 VUA 01550403TX | M2 x 0.4 | 0.4 | 1.55 | 4 | 3T | 4 | 50 | |
| 5 VUA 01950453TX | M2.5 x 0.45 | 0.45 | 1.95 | 5 | 3T | 4 | 50 | |
| 5 VUA 02300503TX | M3 x 0.5 | 0.5 | 2.3 | 6 | 3T | 6 | 50 | |
| 5 VUA 03200703TX | M4 x 07 | 0.7 | 3.2 | 8 | 3T | 6 | 60 | |
| 5 VUA 04000803TX | M5 x 0.8 | 0.8 | 4 | 10 | 3T | 6 | 60 | |
| 5 VUA 04801003TX | M6 x 1.0 | 1 | 4.8 | 12 | 3T | 6 | 75 |
