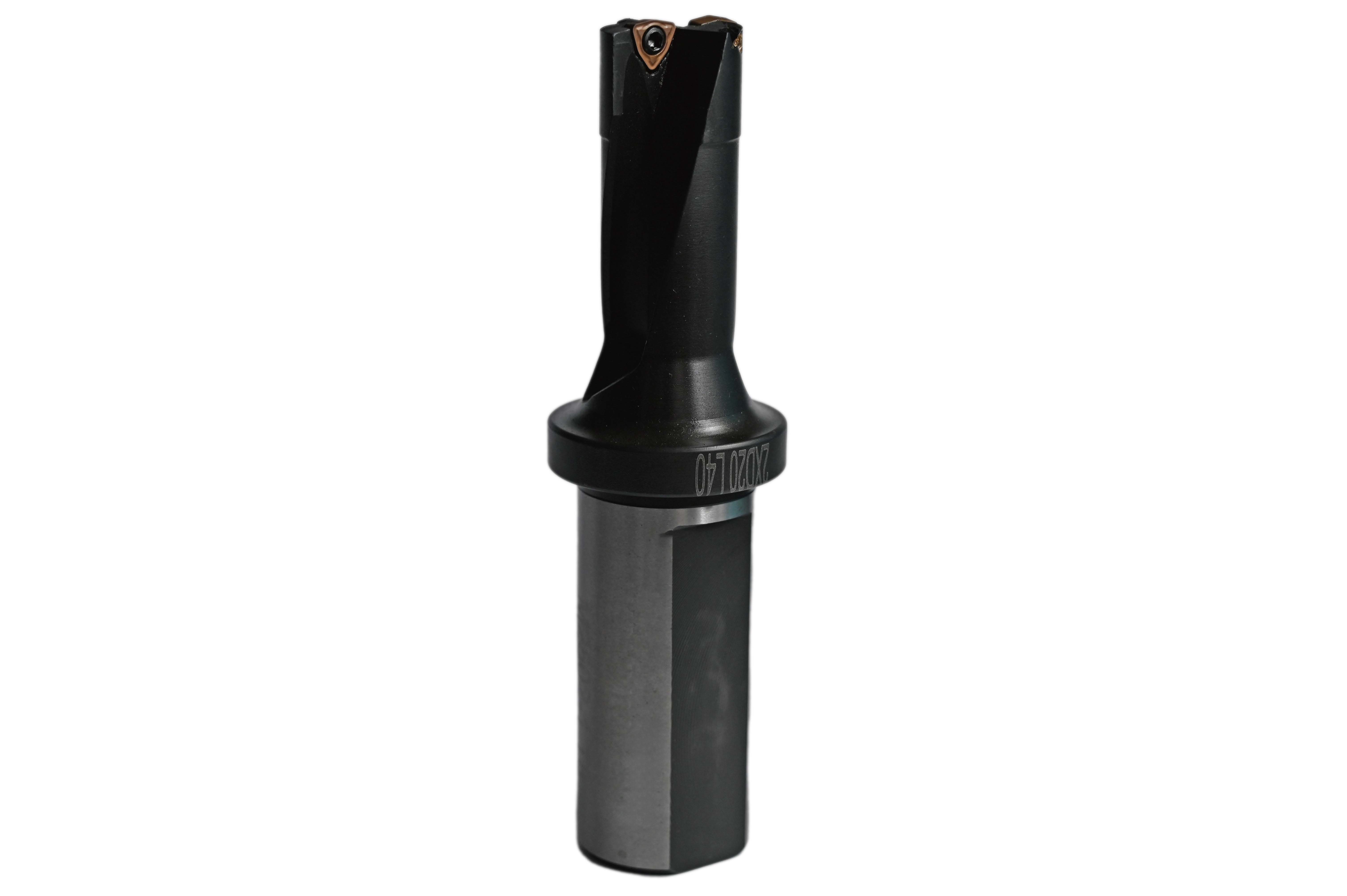

Insert Type Indexable Drills 4XD-C40
Product Model
| Order NO. |
D |
d |
L1 |
L |
Insert |
Screw |
Wrench |
| 4XD12.5-C32 |
12.5 |
32 |
55 |
68 |
DFR020402 |
M2001-3 |
T6 |
| 4XD13-C32 |
13 |
55 |
68 |
| 4XD13.5-C32 |
13.5 |
59 |
72 |
| 4XD14-C32 |
14 |
59 |
72 |
| 4XD14.5-C32 |
14.5 |
63 |
77 |
WCMX030208 |
M2502-1 |
T8 |
| 4XD15-C32 |
15 |
63 |
77 |
| 4XD15.5-C32 |
15.5 |
67 |
82 |
| 4XD16-C32 |
16 |
67 |
82 |
| 4XD16.5-C32 |
16.5 |
71 |
86 |
| 4XD17-C32 |
17 |
71 |
86 |
| 4XD17.5-C32 |
17.5 |
75 |
91 |
| 4XD18-C32 |
18 |
75 |
91 |
| 4XD18.5-C32 |
18.5 |
79 |
95 |
| 4XD19-C32 |
19 |
79 |
95 |
| 4XD19.5-C32 |
19.5 |
84 |
101 |
| 4XD20-C32 |
20 |
84 |
101 |
| 4XD21-C32 |
21 |
87 |
105 |
WCMX040208 |
M2502-1 |
T8 |
| 4XD22-C32 |
22 |
91 |
109 |
| 4XD23-C32 |
23 |
95 |
114 |
| 4XD24-C32 |
24 |
100 |
119 |
| 4XD25-C32 |
25 |
104 |
124 |
WCMT050308 |
M3002-5 |
T9 |
| 4XD26-C32 |
26 |
107 |
128 |
| 4XD27-C32 |
27 |
111 |
132 |
| 4XD28-C32 |
28 |
115 |
137 |
| 4XD29-C32 |
29 |
119 |
141 |
| 4XD30-C32 |
30 |
124 |
147 |
| 4XD31-C32 |
31 |
32 |
128 |
150 |
WCMT06T0308 |
M3506-1 |
T15 |
| 4XD32-C32 |
32 |
132 |
154 |
| 4XD33-C32 |
33 |
136 |
158 |
| 4XD34-C32 |
34 |
140 |
162 |
| 4XD35-C32 |
35 |
144 |
166 |
| 4XD36-C32 |
36 |
148 |
170 |
| 4XD37-C32 |
37 |
152 |
174 |
| 4XD38-C32 |
38 |
156 |
178 |
| 4XD39-C32 |
39 |
160 |
182 |
| 4XD40-C32 |
40 |
164 |
186 |
