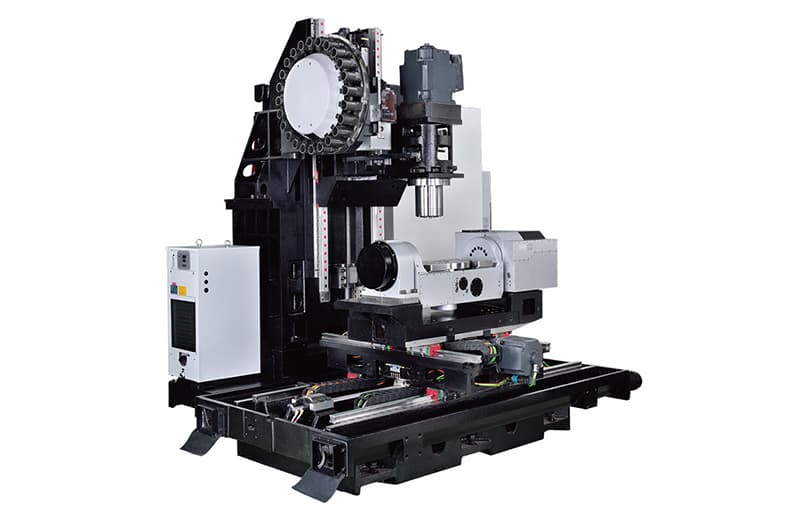

EUK-LV-255U(L)/EUK-LV-(L)/EUK-LV410U(L)
EUK-LV-255U(L)/EUK-LV-(L)/EUK-LV410U(L)
EUK-LV-255U(L)/EUK-LV-(L)/EUK-LV410U(L)
EUK-LV-255U(L)/EUK-LV-(L)/EUK-LV410U(L)

EUK-LV-255U(L)/EUK-LV-(L)/EUK-LV410U(L)

Product Model

Summary



MACHINE FEATURES


  • The integrated rectangular table with the tilting rotary table makes the machine suitable for large workpieces.

  • The rotating axis and tilting axis are pneumatically clamped.

  • 45mm oversized roller type linear guideways on X, Y, Z-axis.

  • 12,000 RPM spindle speed is standard. 15,000 RPM built-in type spindle is optional.

  • Indexing accuracy on rotary table can reach 20 sec., with repeatability of 6 sec.

  • Choice of Fanuc, Siemens, Heidenhain controller with 5 axis or 4 axis simultaneous control.

  • Rugged machine construction ensures maximum stability during high speed cutting.

  • 40 tool magazine is standard.
    60 tool magazine is optional.

  • Product Description

    LV-320U

    Tilting Rotary Table

  • The use of a tilting rotary table enables the machine to perform 5-axis machining, which is ideal for the machining of complicated parts.

  • LV-320UL

    Integrated Rectangular Table with Tilting Rotary Table

  • The integration of a rectangular table and an embedded tilting rotary table enables the machine to cut large workpieces.
  • Tilting degree: -120° ~ 30°
  • Rotating degree: 360°

Inquiry Prev Back Next

Specification

Material

Product Name UNIT EUK-LV255U(L) EUK-LV320U(L) EUK-LV410U(L)
Rotary Table
Rotary Table Size mm Ø255 Ø320 Ø400
 Rotation Diameter(MAX) mm Ø510 Ø590 Ø690
T-Slot Size mm 14 14 14
Rotation Speed Of Rotation Axis(MAX) min-1 22 25 16.6
Tilt Axis Angle deg. -120 ~ +40 -120 ~ +30 -120 ~ +30
Rotation Speed Of Tilt Axis(MAX) min-1 16.6 16.6 11.1
Table Loading Capacity Rotation /kg 100 200 200
Tilt Axis /kg 75 100 150
Rotary/Tilt Axis Clamping Mode/Pressure Air/ 0.55~0.7 MPa Air / 0.55~0.7 MPa Air / 0.55~0.7 MPa
Position Accuracy sec. 20" 20" 15"
Repeat Accuracy sec. 6" 6" 6"
Axis
X-Axis Travel mm 500 600 700
Y-Axis Travel mm 650 650
Z-Axis Travel mm 600(700) 600(700)
Spindle
Distance Between Spindle Nose & Table Top mm 50~650 50~650 50~650
Spindle Taper (Opt.) BBT40(ST)、HSK-A63(OP)
Pull Stud(Opt.) BT(ST)、DIN(OP)、HSK(OP)、 MAS BT(OP)
Spindle Speed (Opt.) RPM 12000(ST)、15000(OP)
Spindle/Axis Power (Opt.)
Spindle Power KW 11/15KW(ST)、15/18.5KW(OP)/(Motorized spindle)
X/Y/Z Power KW 2004/3/4
X/Y/Z Feedrate (Rapid Speed) M/min 30/ 30/ 24
X/Y/Z Feedrate (Cutting Speed) mm/min 15000
Axis Specification
X/Y/Z Liner Scale mm 45 / 45 / 45 ( Z-Axis6/8 Blocks)
Liner Scale Level HIWAN:Level_SP(Schneeberger:Level_P)
3-AXIS D40mm/P10 BALL SCREW_C3+
ATC
Tool Magazine Capacity (Opt.) 40T(ST) / 60T(OP)
Max. Tool Diameter mm #40-70、HSK-A63-70
Tool Weight KG #40-7、HSK-A63-7
Max. Tool Length mm #40-300、HSK-A63-300
Others
ISO10791-2 mm 0.008
VDI 3441 mm 0.006
Power KVA 35 35 40
Air Mpa 0.65 ±10%
Machine weight Ton 9.8 10.5 11.2
