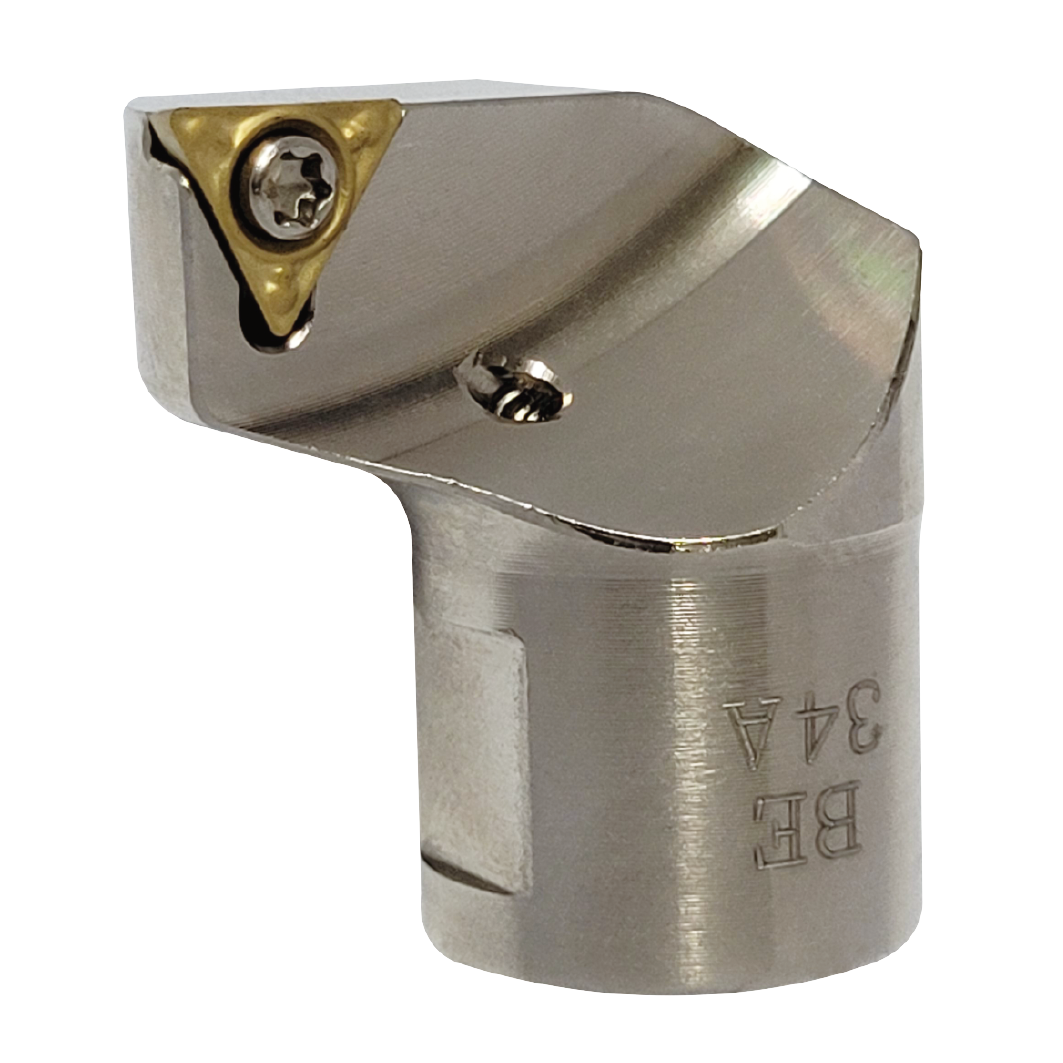

Boring Cutter Head
Product Model
| Model No. |
Dimensions.mm |
Insert |
screw |
Wrench |
| D |
H |
L |
M |
Range |
|
|
| BE09A |
9 |
7 |
18 |
M05 |
9-10.5 |
TP..0802.. |
MS2205A |
ETF07 |
| BE10.5A |
10.5 |
7 |
18 |
M05 |
10.5-12 |
TP..0802.. |
MS2205A |
ETF07 |
| BE12A |
12 |
8 |
23 |
M06 |
12-14 |
TP..0802.. |
MS2205A |
ETF07 |
| BE14A |
14 |
10 |
23 |
M06 |
14-16 |
TP..0802.. |
MS2206A |
ETF07 |
| BE16A |
16 |
10 |
23 |
M06 |
16-18 |
TP..0802.. |
MS2206A |
ETF07 |
| BE18A |
18 |
14 |
27 |
M10 |
18-20 |
TP..0802.. |
MS2206A |
ETF07 |
| BE20A |
20 |
14 |
27 |
M10 |
20-22 |
TP..0802.. |
MS2206A |
ETF07 |
| BE22A |
22 |
14 |
27 |
M10 |
22-24 |
TP..0802.. |
MS2206A |
ETF07 |
| BE24A |
24 |
14 |
27 |
M10 |
24-26 |
TP..0802.. |
MS2206A |
ETF07 |
| BE26A |
26 |
14 |
27 |
M10 |
26-28 |
TP..0802.. |
MS2206A |
ETF07 |
| BE28A |
28 |
14 |
27 |
M10 |
28-30 |
TP..0802.. |
MS2206A |
ETF07 |
| BE30A |
30 |
14 |
27 |
M10 |
30-32 |
TP..0802.. |
MS2206A |
ETF07 |
| BE32A |
32 |
14 |
27 |
M10 |
32-34 |
TP..0802.. |
MS2206A |
ETF07 |
| BE34A |
34 |
14 |
27 |
M10 |
34-36 |
TP..0802.. |
MS2206A |
ETF07 |
| BE36A |
36 |
14 |
27 |
M10 |
36-38 |
TP..0802.. |
MS2206A |
ETF07 |
| BE38A |
38 |
14 |
27 |
M10 |
38-40 |
TP..0802.. |
MS2206A |
ETF07 |
| BE40A |
40 |
14 |
27 |
M10 |
40-42 |
TP..0802.. |
MS2206A |
ETF07 |
| BE42A |
42 |
14 |
27 |
M10 |
42-44 |
TP..0802.. |
MS2206A |
ETF07 |
| BE44A |
44 |
14 |
27 |
M10 |
44-46 |
TP..0802.. |
MS2206A |
ETF07 |
| BE46A |
46 |
14 |
27 |
M10 |
46-48 |
TP..0802.. |
MS2206A |
ETF07 |
| BE48A |
48 |
14 |
27 |
M10 |
48-50 |
TP..0802.. |
MS2206A |
ETF07 |
| BE50A |
50 |
14 |
27 |
M10 |
50-52 |
TP..0802.. |
MS2206A |
ETF07 |
